50DZ

Logo

Practicality and Versatility

The 50DZ is Hubei Dollar’s intermediate rotator, but it doesn’t mean it is limited in its capabilities. This light rotator can pick up and rotate 50 ton (110,000 lbs) at full extension. Meeting your budget and requirements. Hubei Dollar is proud to produce this exceptional piece of equipment.

Unit weight without chassis: 7,700 kgs (17,000 lbs)

Logo

Standard Features

  • 1.Planetary winch with cable tensioner.
  • 2.Independent boom and wheel lift system, 360˚ boom rotation/190˚ each direction, 360˚ sheave heads,

  • 3. Stages boom & 3 stages wheel lift.

  • 4.Steel independent light pylon with lights.
  • 5.Left and right side manual control & button type wireless remote control.
  • 6.Cross bar, 1 set.
  • 7.Forks, 6 pairs.
  • 8.Fork holders, 1 pair.
  • 9.Tow chain, 1 set.
  • 10.Yellow LED light bar, 1 set.
  • 11.Binding straps, 4 sets.
  • 12.Hydraulic oil tank with gauge, 1 set.
  • 13.Hydraulic pump, 1 set.
  • 14.Left side and right side steel toolboxes with chrome door handles and removable rails.
  • 15.Hydraulic front & Rear Outriggers.
  • 16.(Steel) Paint: First time iron red anti-rust paint, second time gray middle paint, third time and forth time standard color paint.

Logo

Options

  • 1．Slide turret.
  • 2．Joystick type wireless remote control.
  • 3．Bigger or extra winches.
  • 4．Counterweight.
  • 5．Extra forks and fork holders.
  • 6．Full recovery tool package.
  • 7．LED lights – thinner light bar, night working lights, strobe lights, lights inside toolbox.
  • 8．Back-up lights & alarm.
  • 9．Rear Camera & Monitor.
  • 10．D rings on Tailboard & Boom & Legs.
  • 11．PTO.
  • 12．Customized toolboxes (Toolboxes shape, material, etc).
  • 13．Customized light pylon (Toolboxes shape, material, etc).
  • 14．Customized painting (Electrophoretic paint, pattern, etc) .
  • 15．Installation services and extended warranty.

Logo

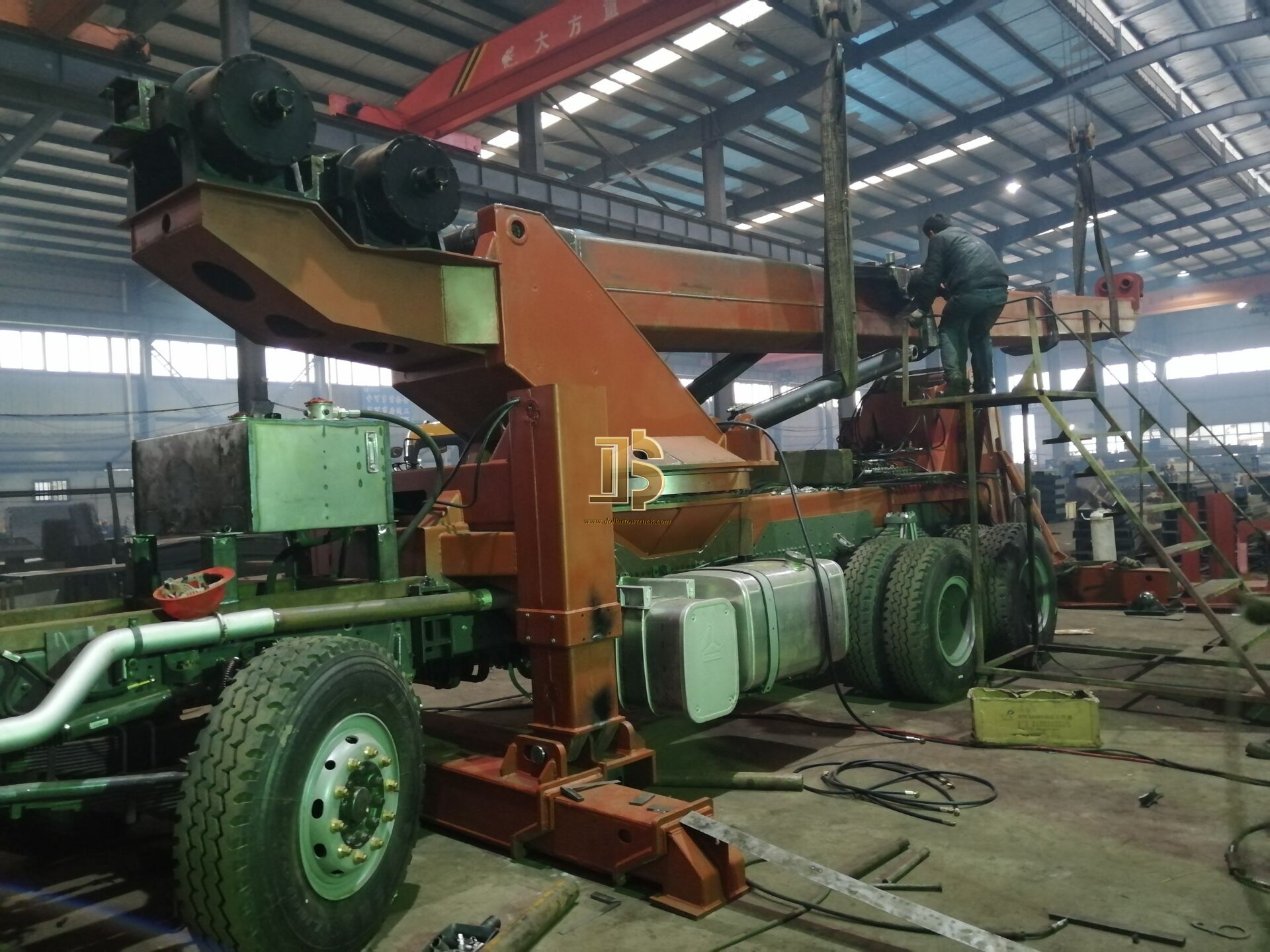

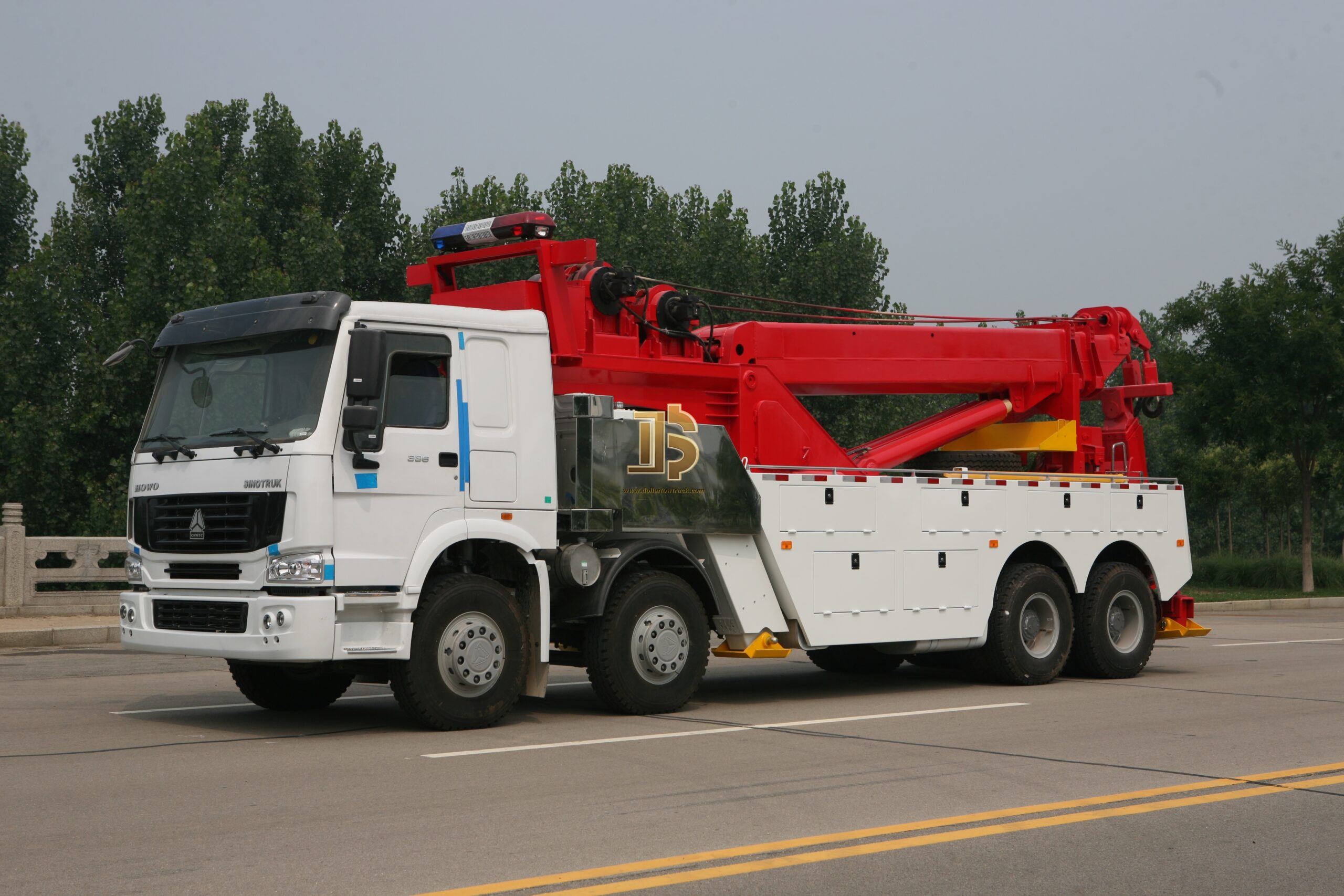

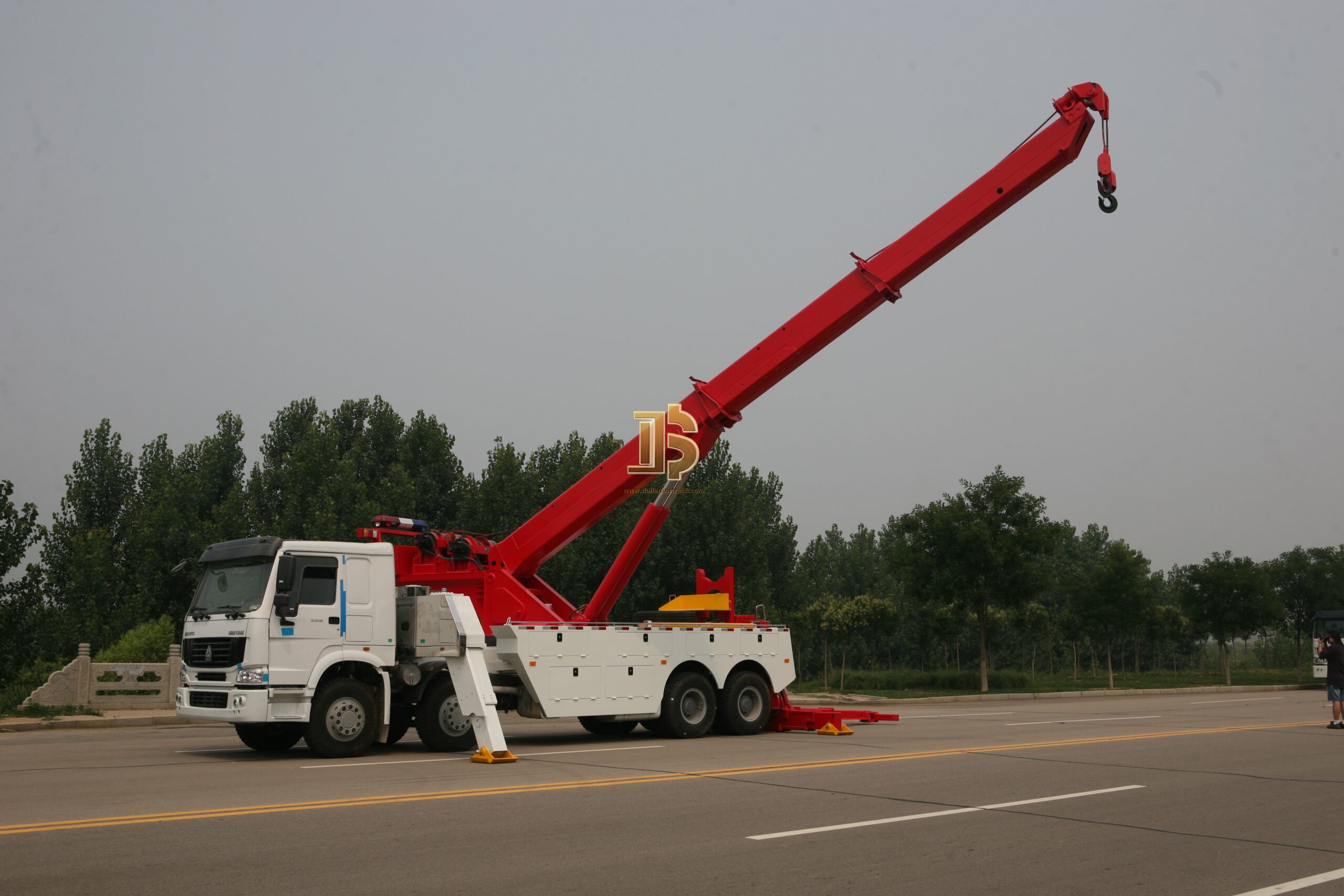

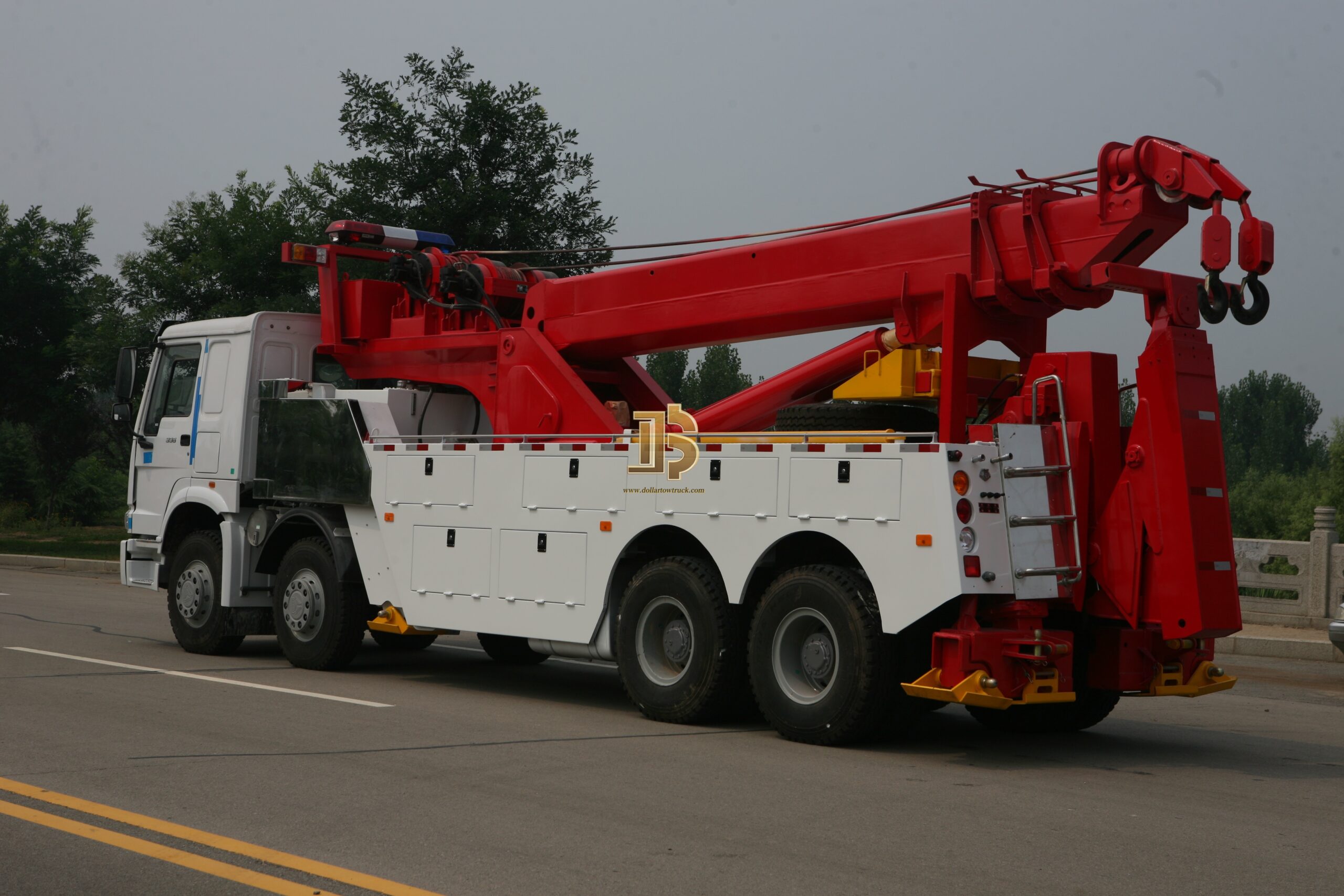

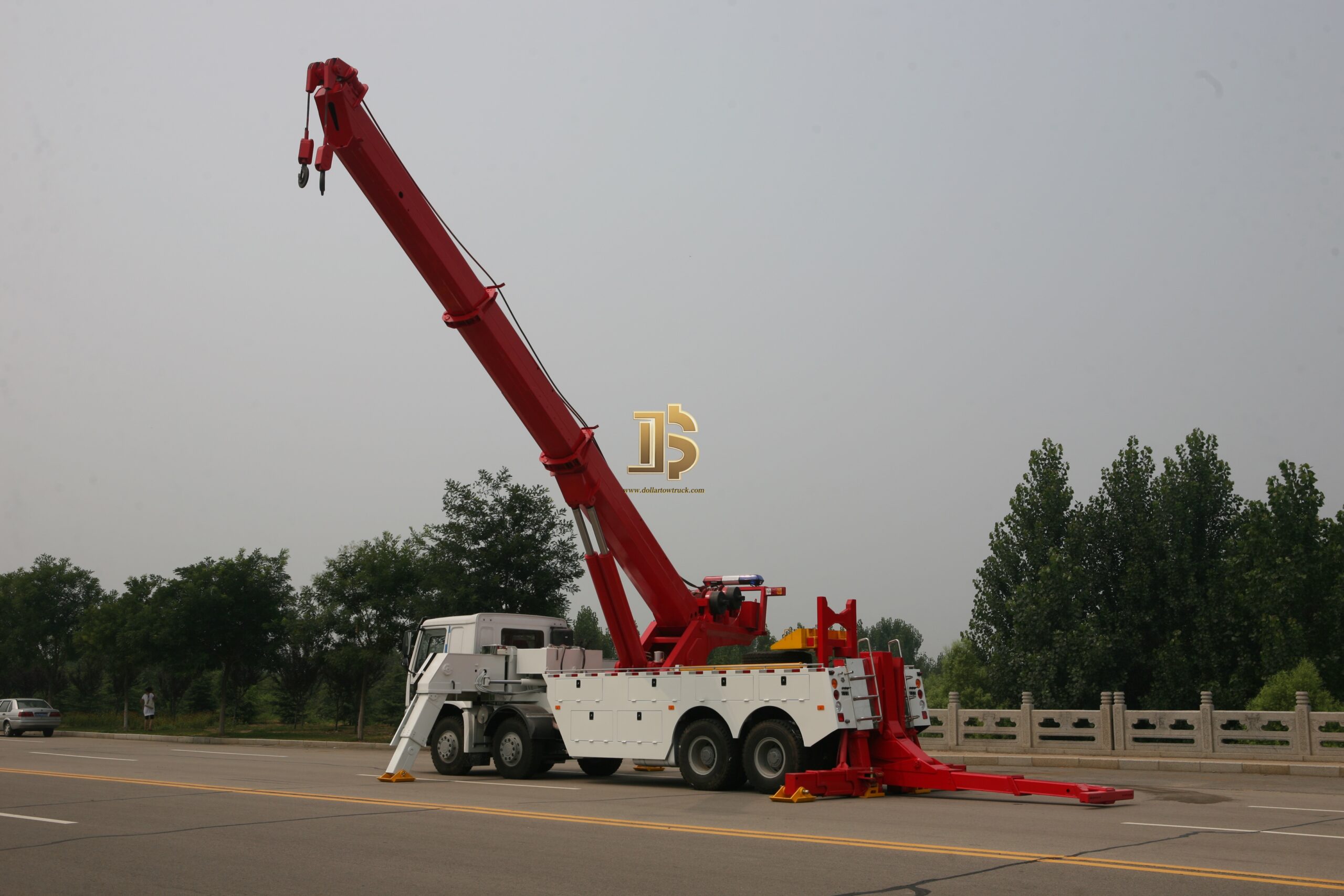

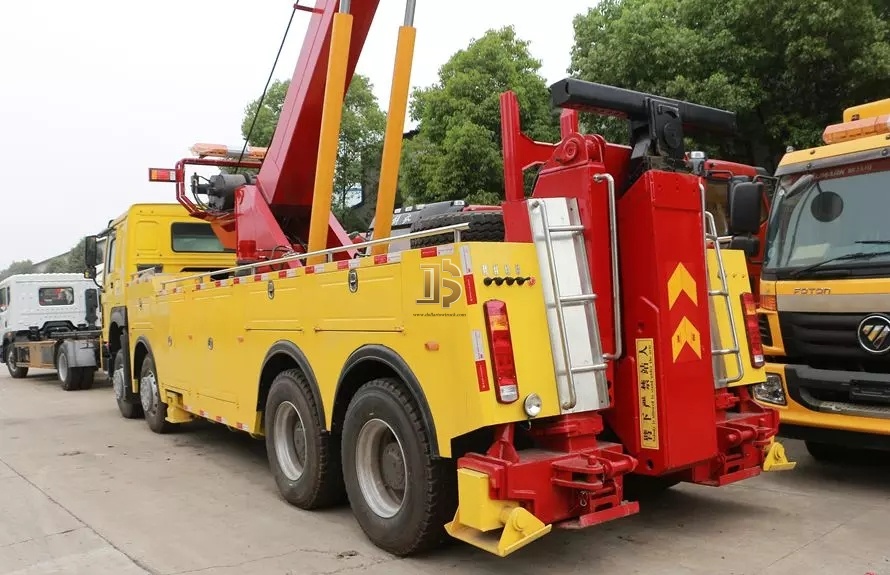

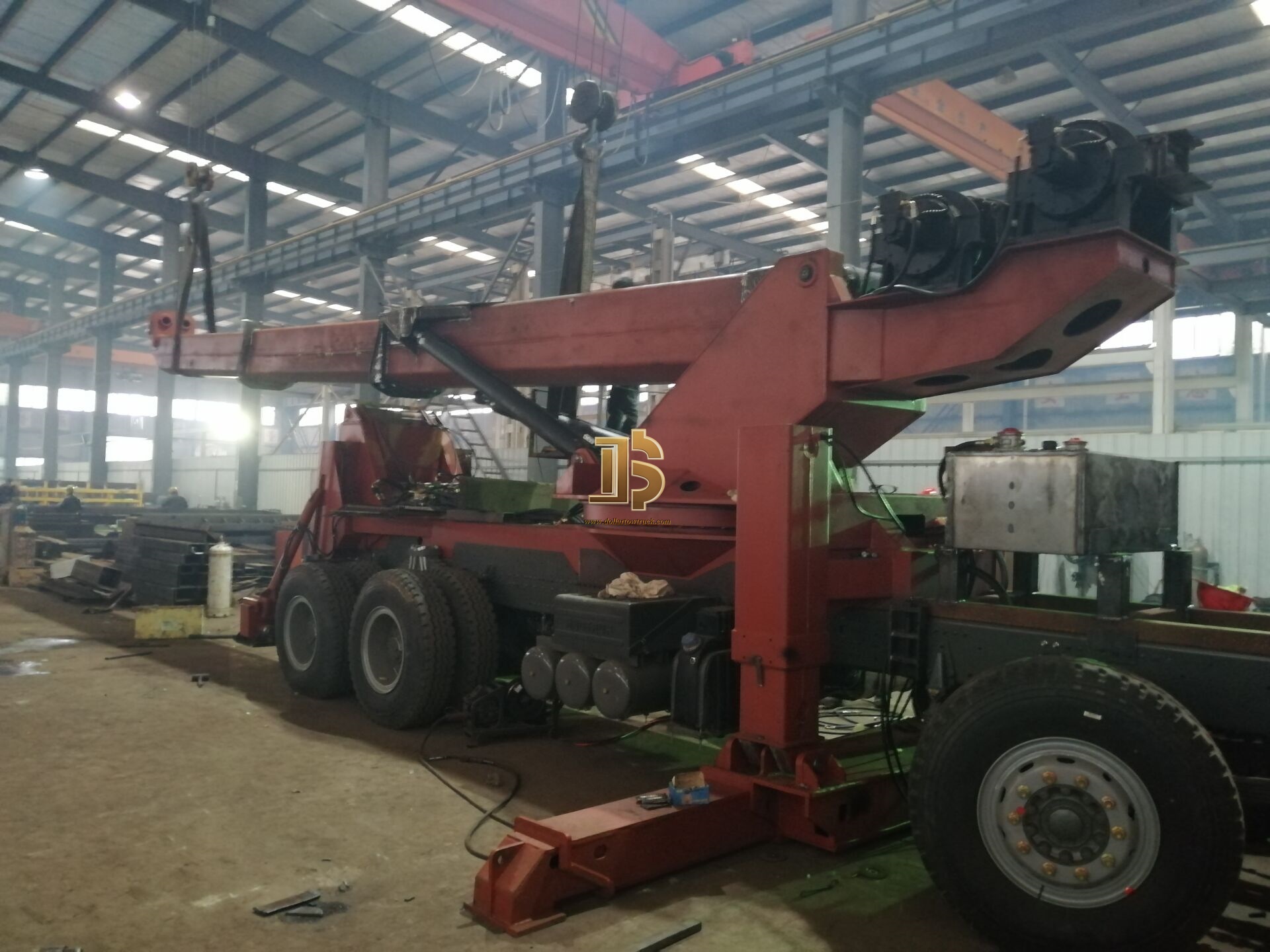

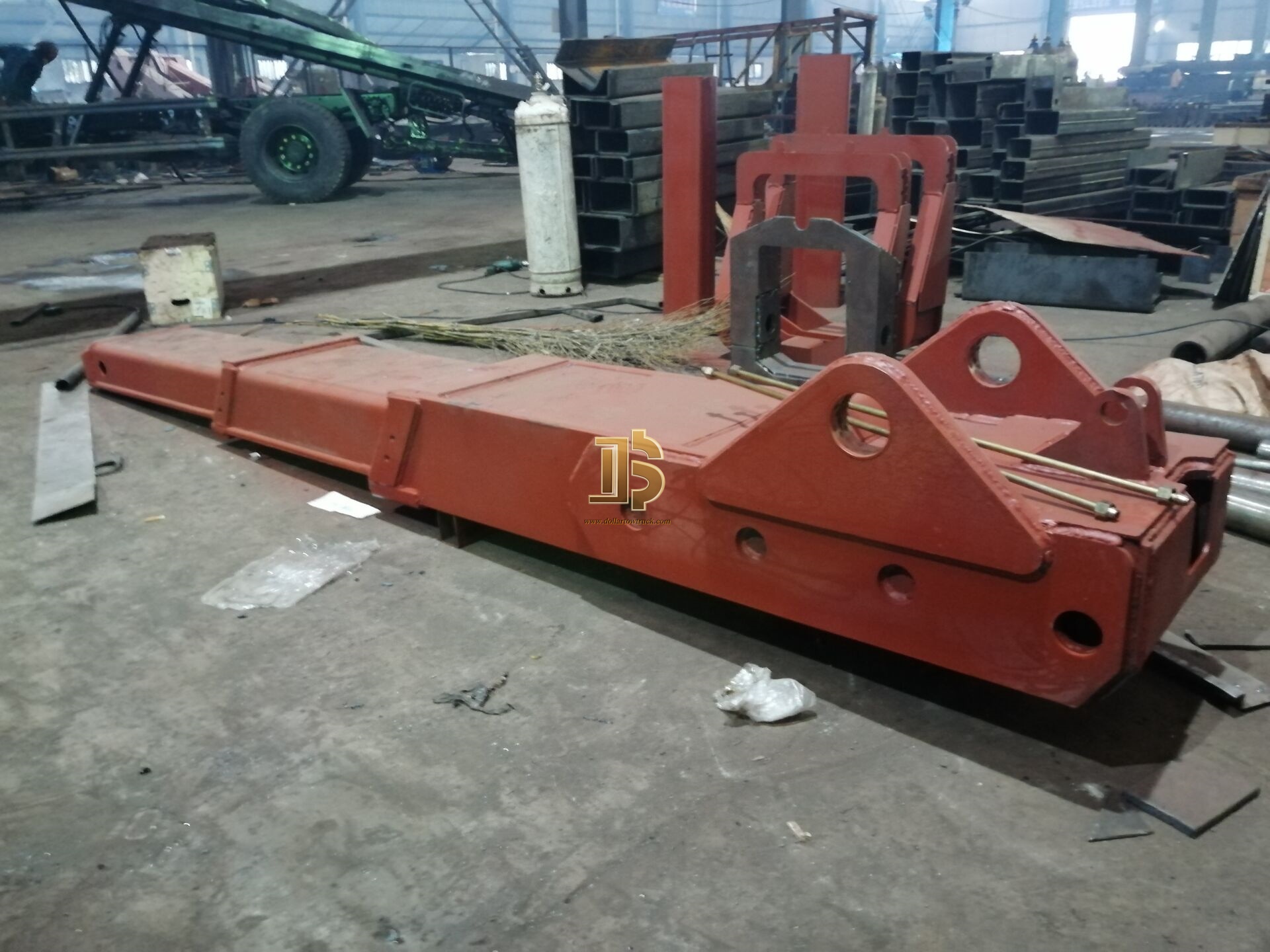

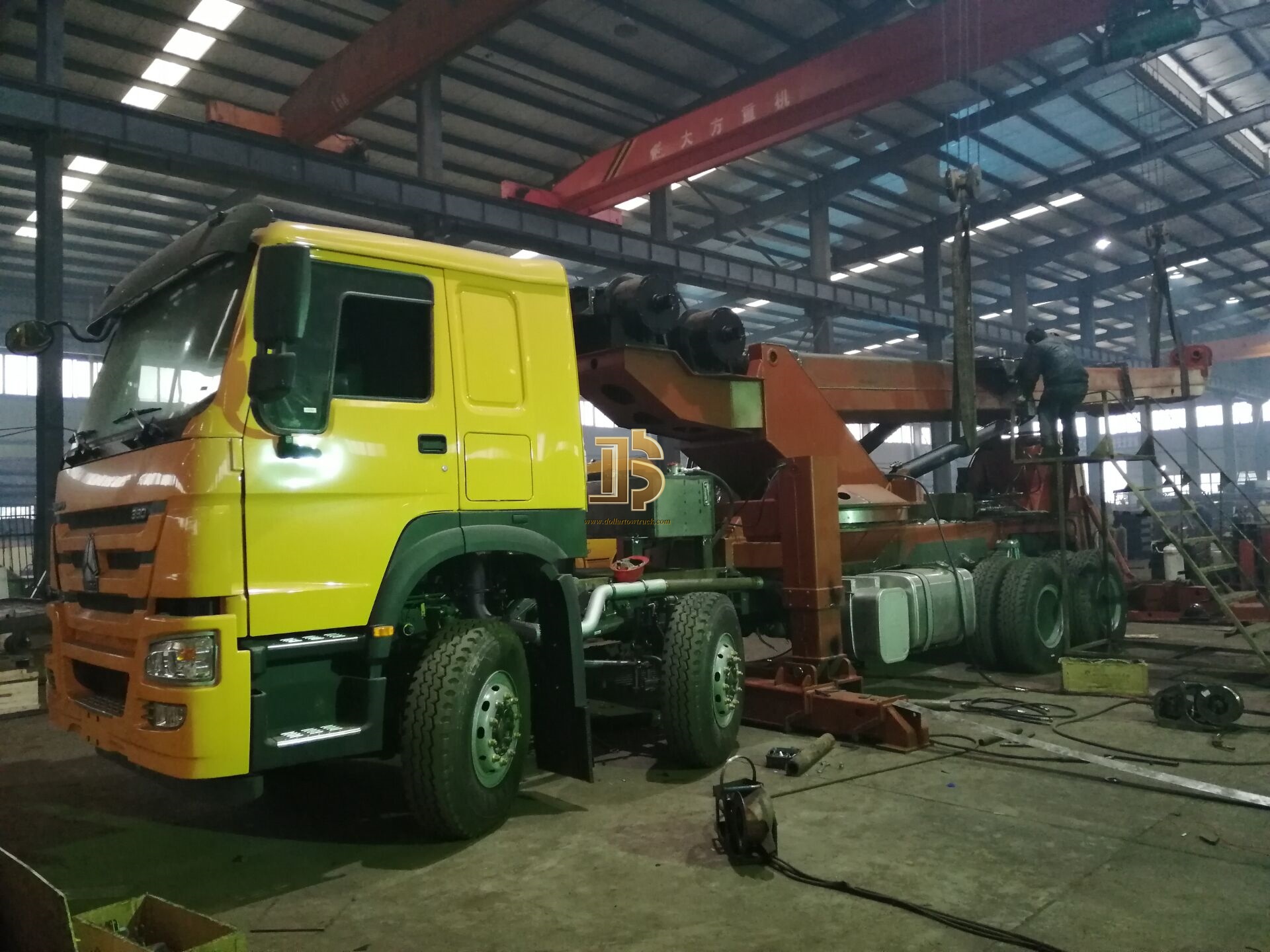

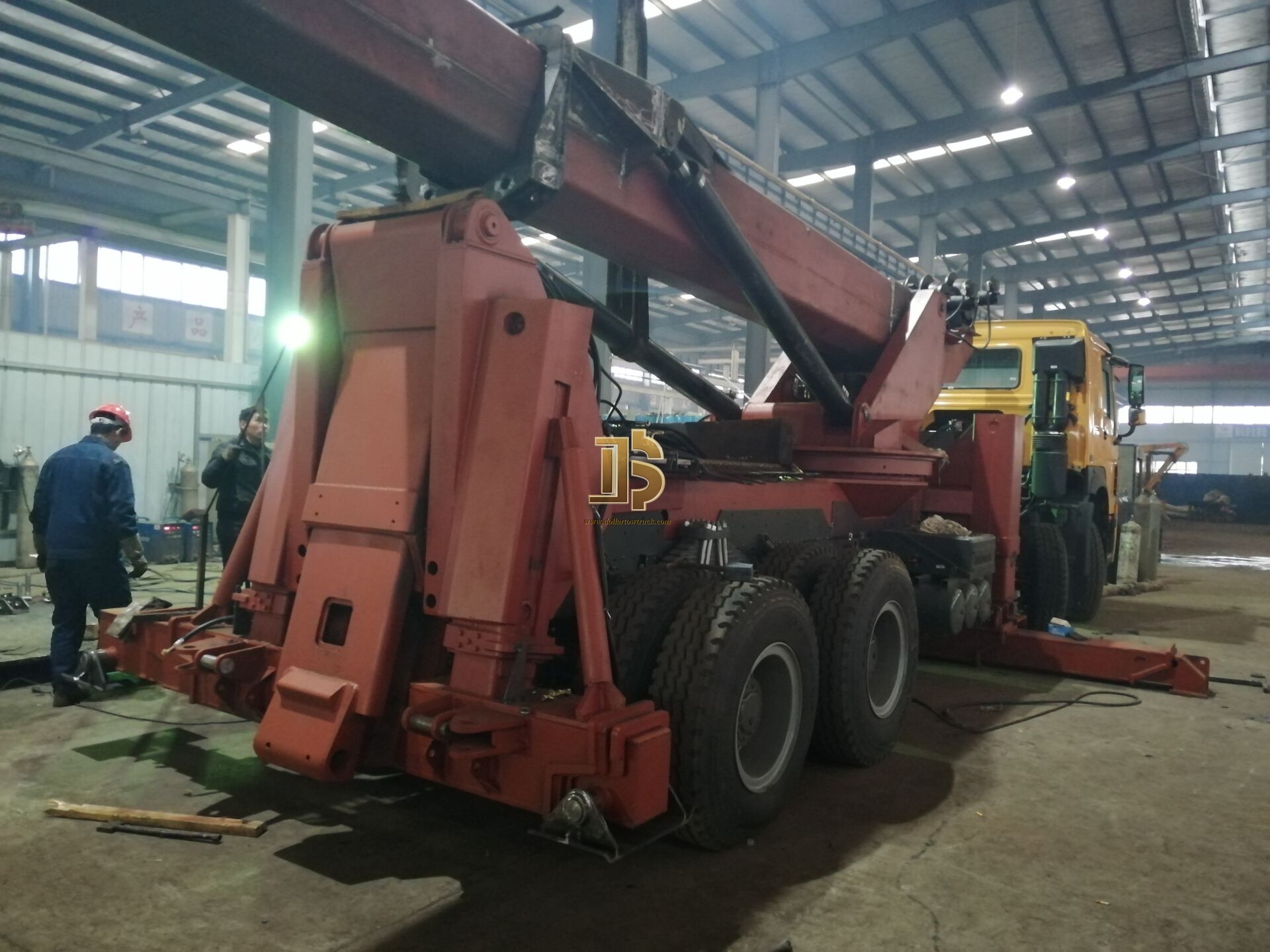

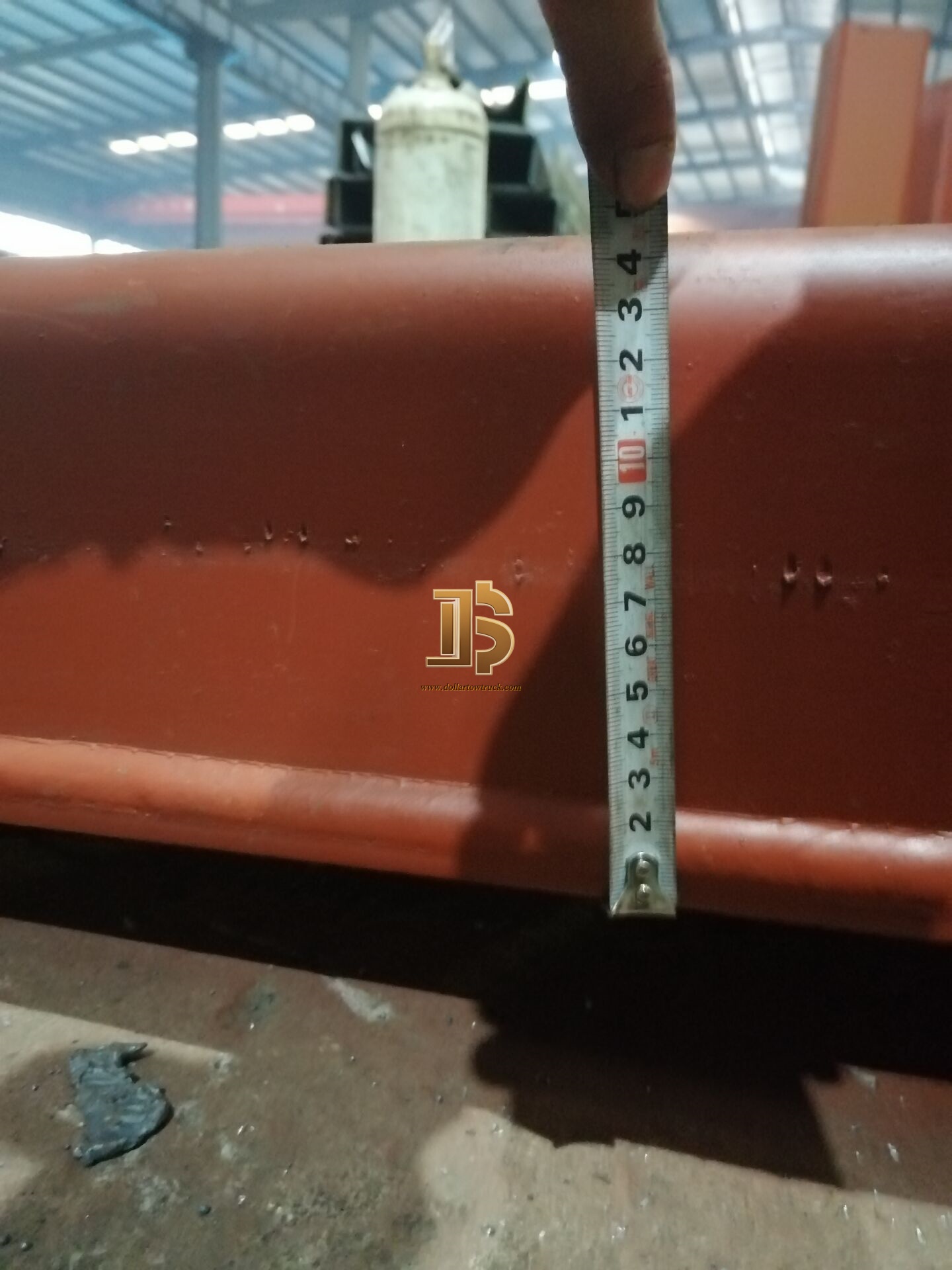

Gallery

Logo

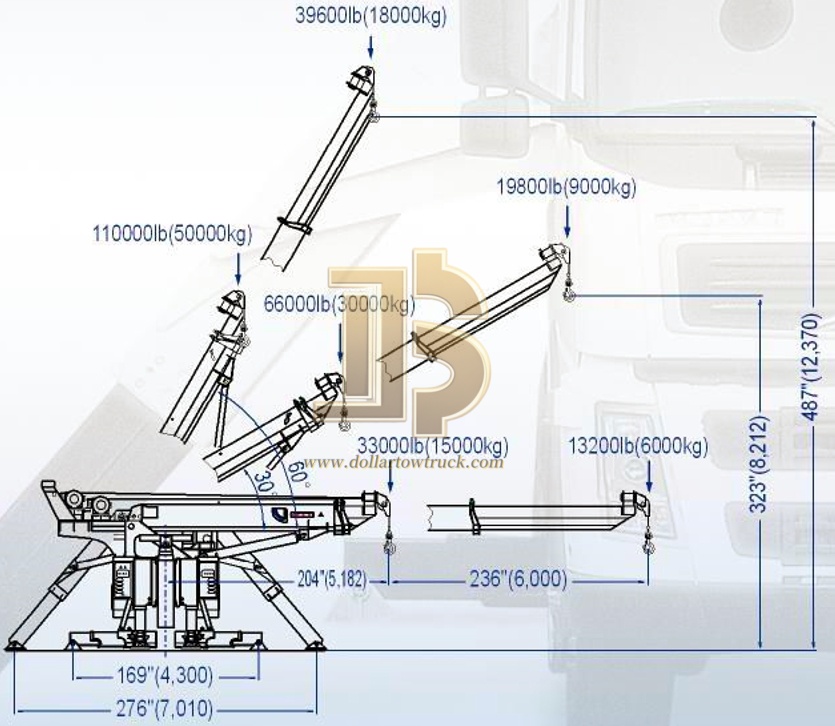

Line Drawing

NOTE: Configuration is subject to local laws and regulations. All information in this document is for reference purposes only. Optional configuration might be shown.

Logo

capacity

Boom Rating: 50,000 kgs (110,000 lbs)

Winch(First Layer): 25,000 kgs (55,000 lbs) x 2 winches

Cable: 60 m (200)

Wheel Lift Extended Rating: 7,700 kgs (17,000 lbs)

Tow Rating: 40,000 kgs (88,000 lbs)

All ratings are based on structural and design factors only. Vehicle chassis capacity and capabilities can vary significantly, affecting the overall performance and rating of the unit. All chassis specifications are minimums, heavier specifications may be required depending on chassis and equipment weights. Please contact your nearest distributor for additional information.

Hubei Dollar Tow Trucks Co. reserves the right to change, improve or modify products, which may change the specifications, models and feature availability at any time without notice and without obligation. Please contact your nearest distributor for additional information.
