Surprising Performance

The 4DZ is Dollar’s compact rotator, but it doesn’t mean it is incapable. This light rotator can pick up and rotate 2.5 ton (5,500 lbs) at full extension. This small machine can go where no other rotators can. Meeting your budget and requirements. Dollar is proud to produce this exceptional piece of equipment.

Logo

Standard Features

  • 1.Planetary winch with cable tensioner.

  • 2.Independent boom and wheel lift system, 360˚ boom rotation/190˚ each direction, 360˚ sheave heads, stages boom & 2 stages wheel lift.
  • 3. Steel independent light pylon with lights.
  • 4. Left and right side manual control & Wireless remote control.

  • 5．Cross bar, 1 set.

  • 6．Frame forks, 4 pairs.
  • 7．Full recovery tool package.

  • 8．Fork holders, 1 pair.

  • 9. Tow chain, 1 set.

  • 10．Yellow LED light bar, 1 set.
  • 11．Binding straps, 4 sets.
  • 12．Hydraulic oil tank with gauge, 1 set.
  • 13．Hydraulic pump, 1 set.
  • 14．Left side and right side steel toolboxes with chrome door handles and removable rails.
  • 15．Hydraulic front & Rear outriggers.

  • 16．(Steel) Paint: First time iron red anti-rust paint, second time gray middle paint, third time and forth time yellow color paint.

Logo

Options

  • 1．Slide turret.
  • 2．Aluminum toolboxes.
  • 3．Aluminum light pylon.
  • 4．A type auxiliary wheels.
  • 5．Bigger or extra winches.
  • 6．Extra forks and fork holders.
  • 7．Full recovery tool package.
  • 8．LED lights – thinner light bar, night working lights, strobe lights, lights inside toolbox.
  • 9．Back-up lights & alarm.
  • 10．Rear Camera & Monitor.
  • 11．D rings on Tailboard & Boom & outriggers.
  • 12．PTO.
  • 13．Custom storage system.
  • 14．Custom painting.
  • 15．Installation services and extended warranty.

Logo

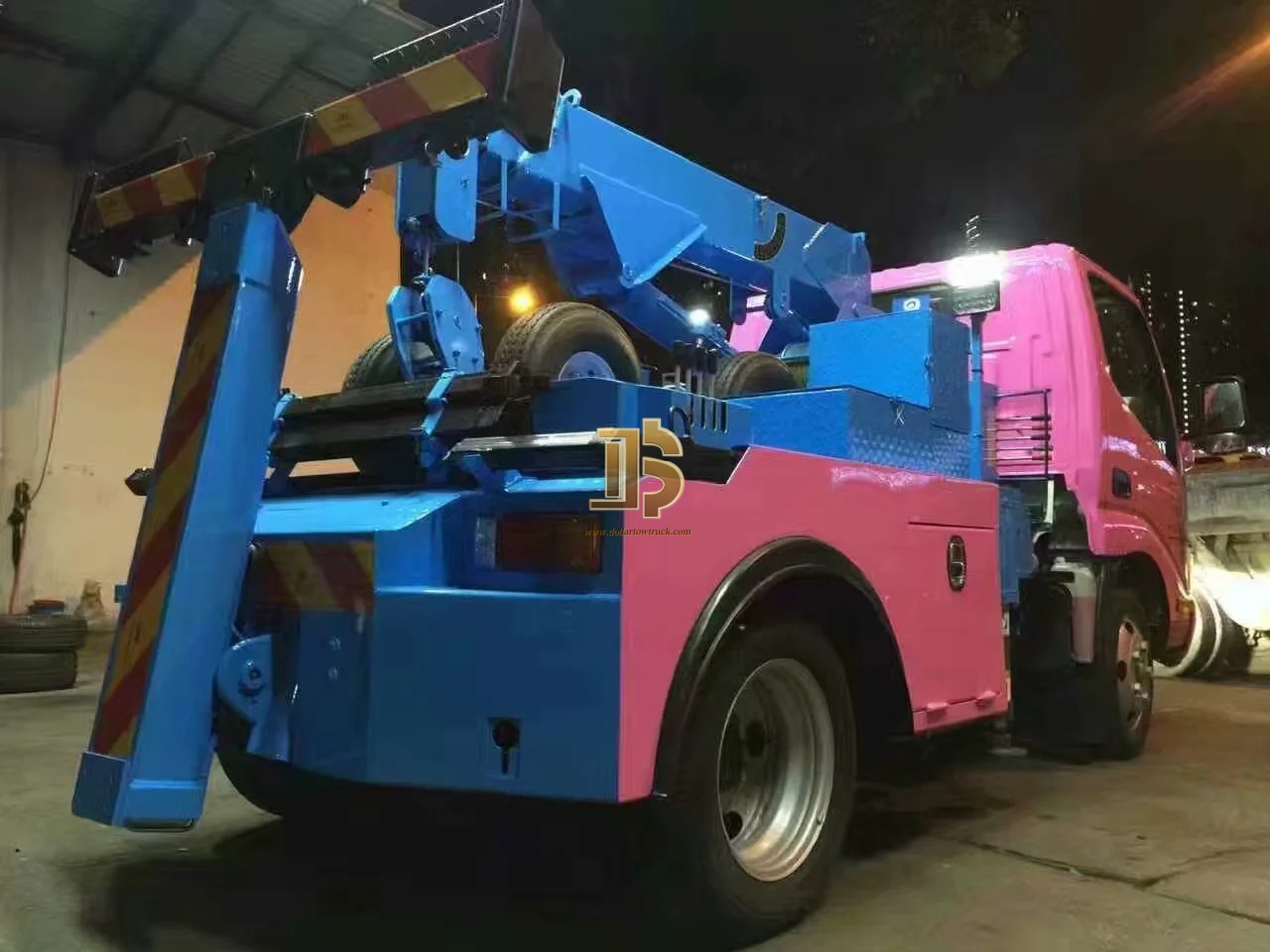

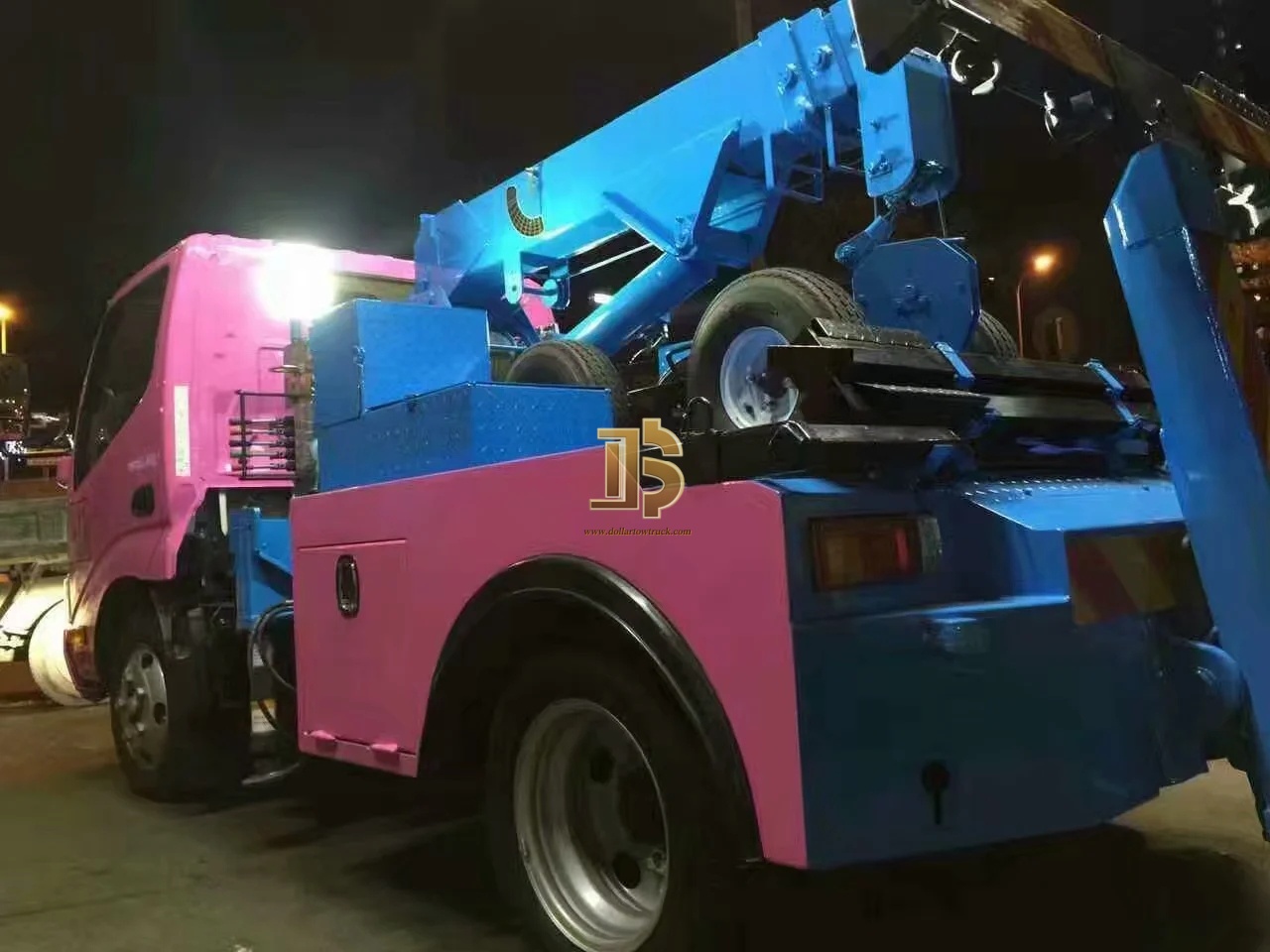

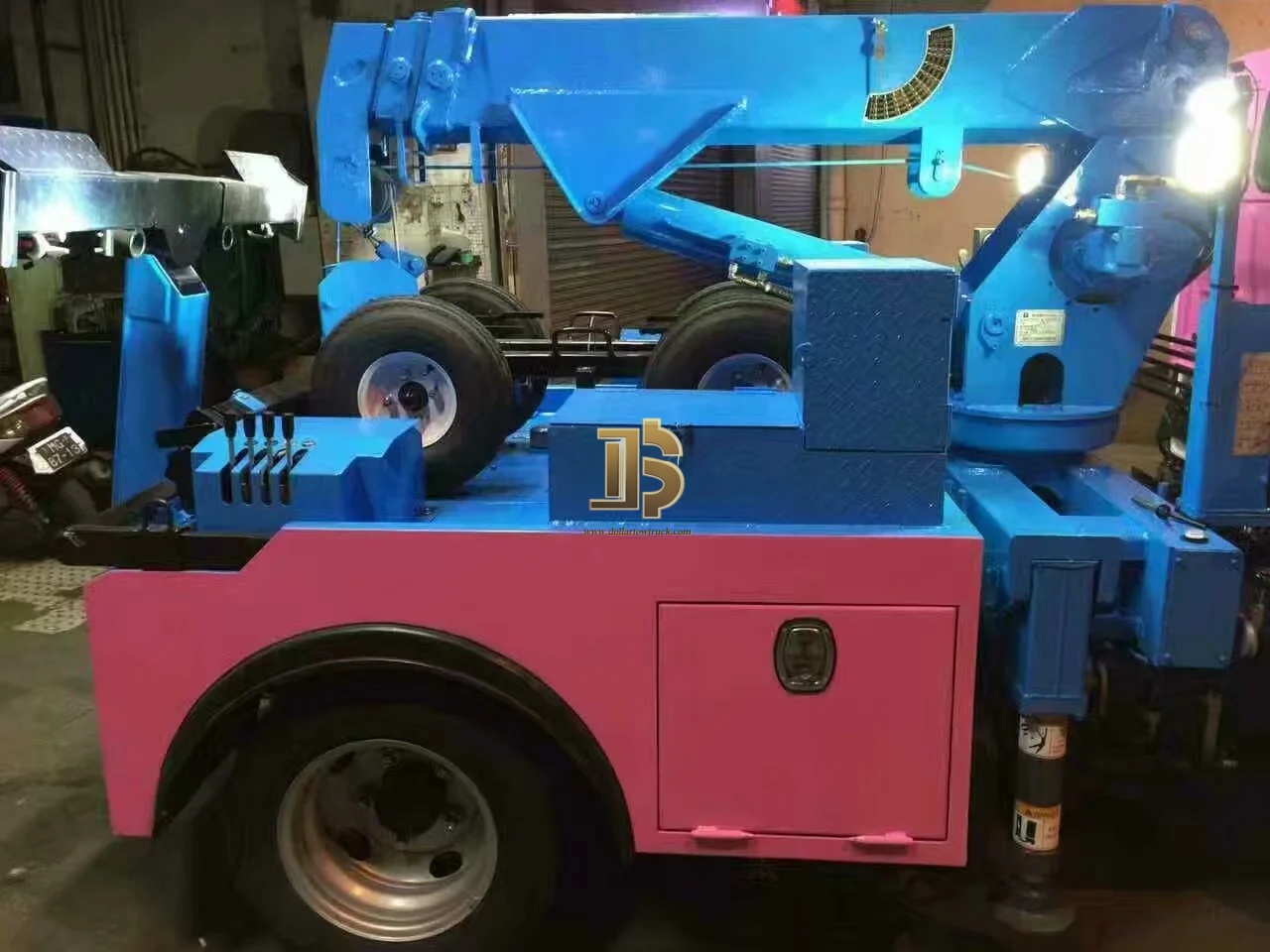

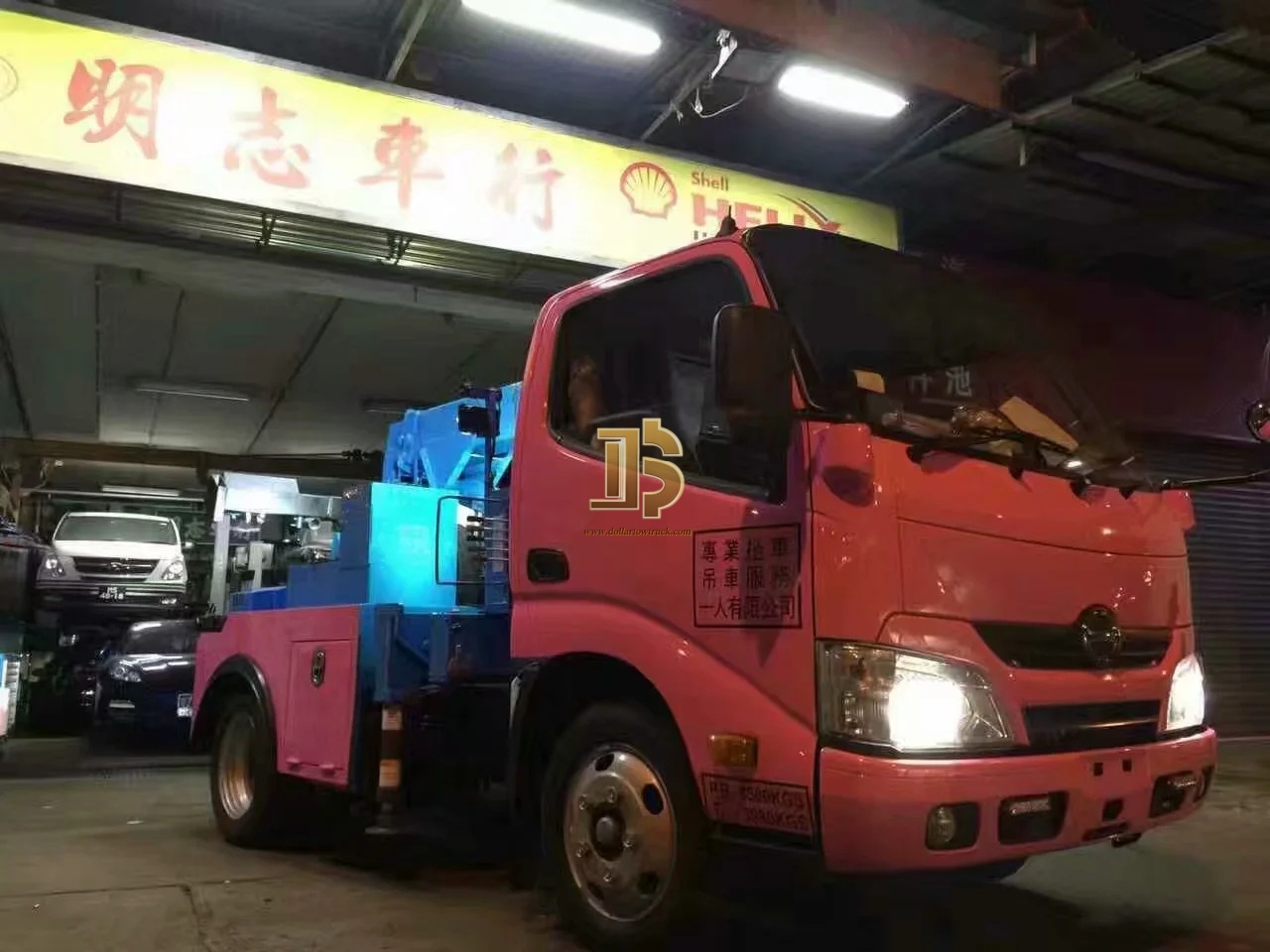

Gallery

Logo

Line Drawing

NOTE: Configuration is subject to local laws and regulations. All information in this document is for reference purposes only. Optional configuration might be shown.

Logo

capacity

Boom Rating: 4,000 kgs (8,800 lbs)
Winch(First Layer): 4,000 kgs (8,800 lbs)
Cable: 45 m (147)
Wheel Lift Extended Rating: 2,500 kgs (5,500 lbs)
Tow Rating: 4,000 kgs (8,800 lbs)

All ratings are based on structural and design factors only. Vehicle chassis capacity and capabilities can vary significantly, affecting the overall performance and rating of the unit. All chassis specifications are minimums, heavier specifications may be required depending on chassis and equipment weights. Please contact your nearest distributor for additional information.

Hubei Dollar Tow Trucks Co. reserves the right to change, improve or modify products, which may change the specifications, models and feature availability at any time without notice and without obligation. Please contact your nearest distributor for additional information.
