25T50D

Logo

Easy Heavy Duty Calls

The 25T50D is a massive towing unit. It is the king of the series. It combines tough towing and recovery performance for the most demanding jobs. Designed for practicality and reliability, this unit is definitely different form the usual Heavy Duty wrecker.

Unit weight without chassis: 50,000 kgs (110,000 lbs).

Logo

Standard Features

  • 1. Planetary winch with cable tensioner.
  • 2. Integrate boom and wheel lift system.
  • 3. Steel independent light pylon with lights.
  • 4. Left and right side manual control system.
  • 5. Cross bar, 1 set.
  • 6. Forks, 4 pairs.
  • 7. Fork holders, 1 pair.
  • 8. Tow chain, 1 set.
  • 9. Yellow LED light bar, 1 set.
  • 10. Binding straps, 4 sets.
  • 11. Hydraulic oil tank with gauge, 1 set.
  • 12. Left side and right side steel toolboxes with chrome door handles and removable rails.
  • 13. Rear legs with mud fork, 1 pair.
  • 14. (Steel) Paint: First time iron red anti-rust paint, second time gray middle paint, third time and forth time standard color paint.

Logo

Options

  • 1. Wireless remote control.
  • 2. Front Legs or Outriggers.
  • 3. Rear Outriggers.
  • 4. A type auxiliary wheels.
  • 5. Bigger winches.
  • 6. Counterweight.
  • 7. Extra forks and fork holders.
  • 8. Fold or straight crane.
  • 9. Full recovery tool package.
  • 10. X-shape side puller.
  • 11. LED lights – thinner light bar, night working lights, strobe lights, lights inside toolbox.
  • 12. Back-up lights & alarm.
  • 13. Rear Camera & Monitor.
  • 14. D rings on Tailboard & Boom & Legs.
  • 15. PTO.
  • 16. Customized toolboxes (Toolboxes shape, material, etc).
  • 17. Customized light pylon (Toolboxes shape, material, etc).
  • 18. Customized painting (Electrophoretic paint, pattern, etc) .
  • 19. Installation services and extended warranty.

Logo

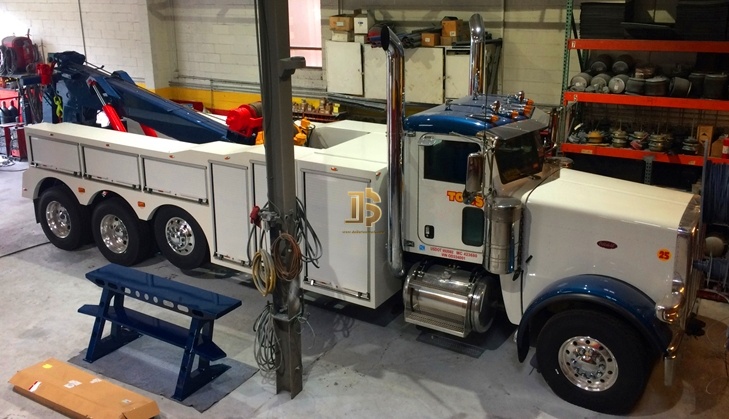

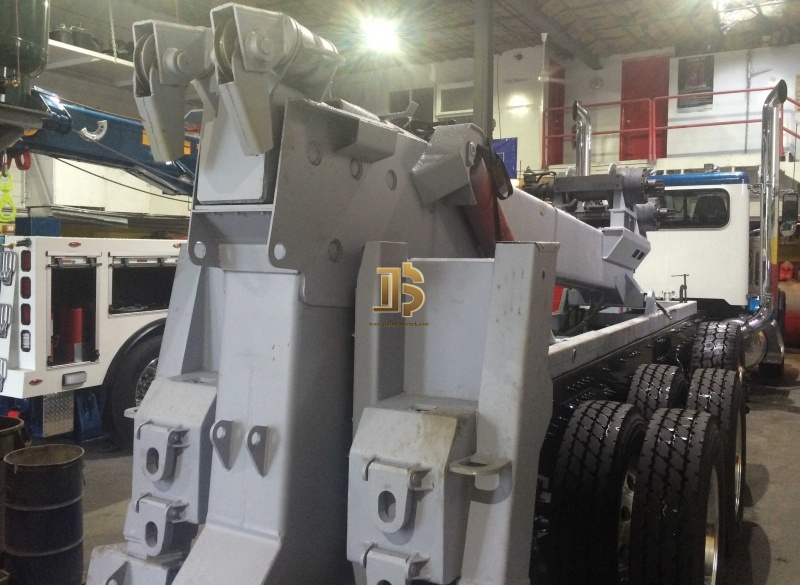

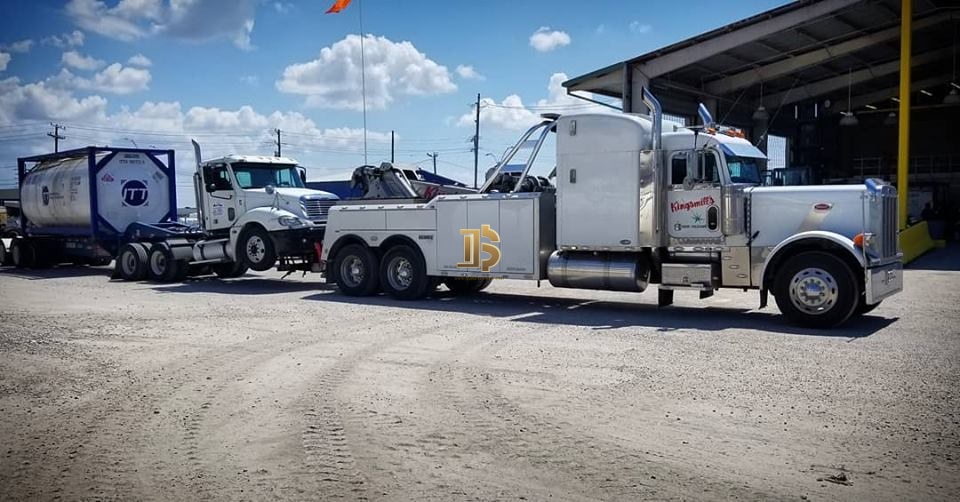

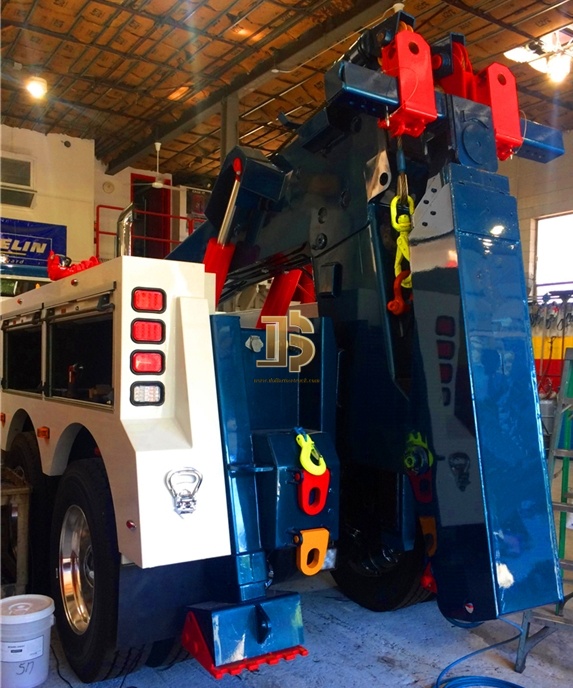

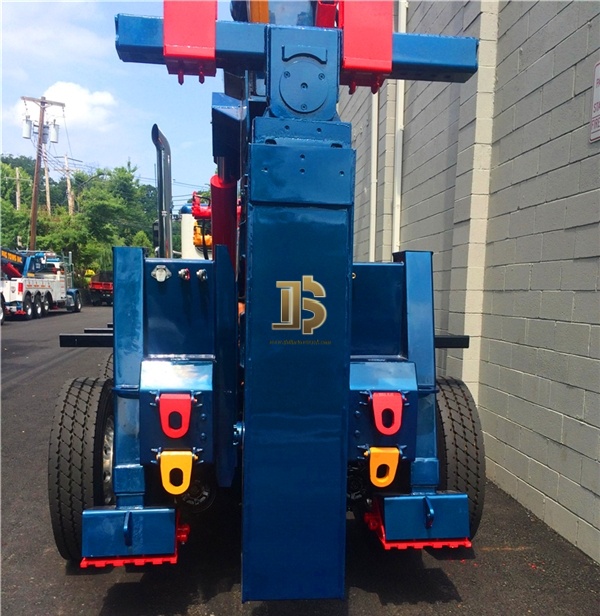

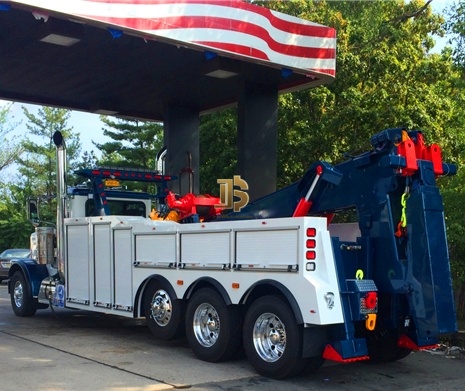

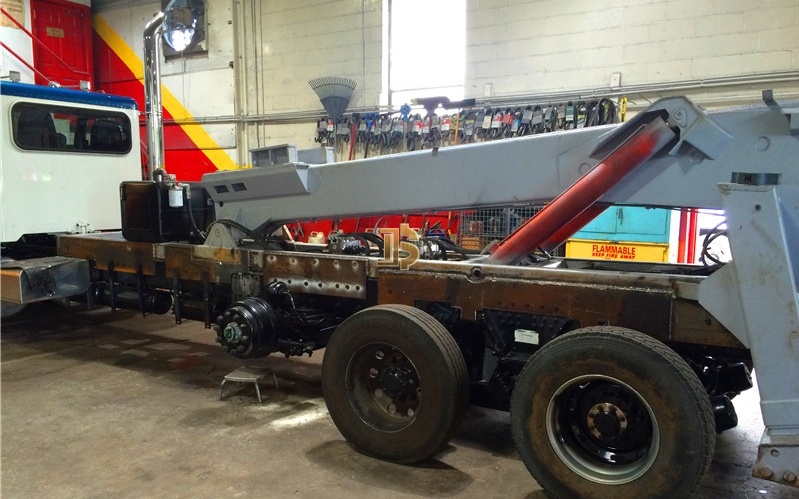

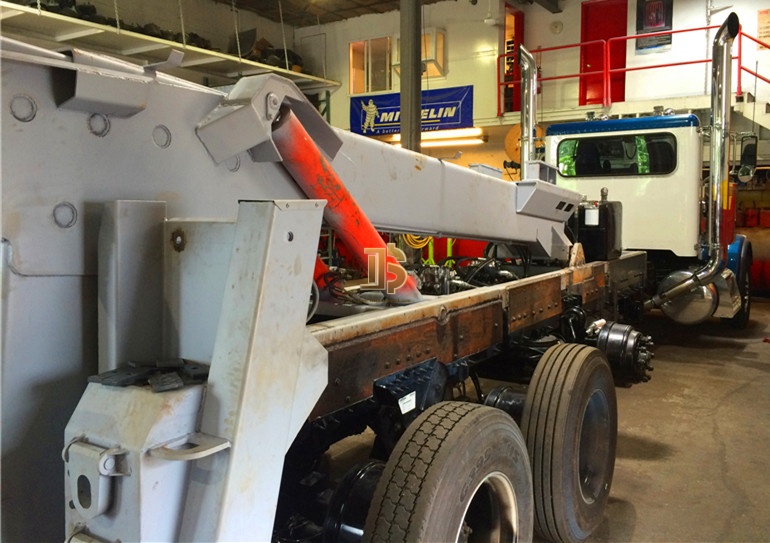

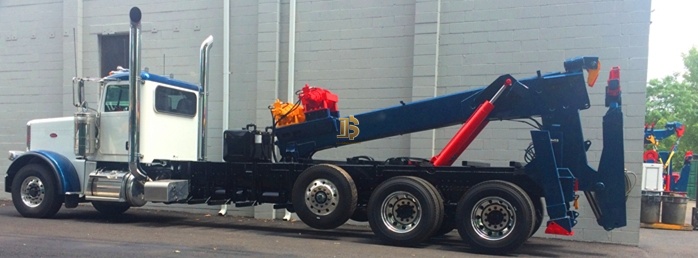

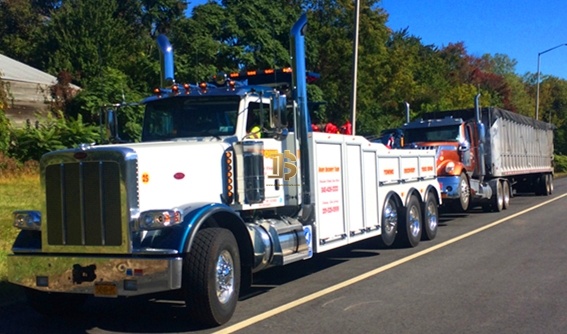

Gallery

Logo

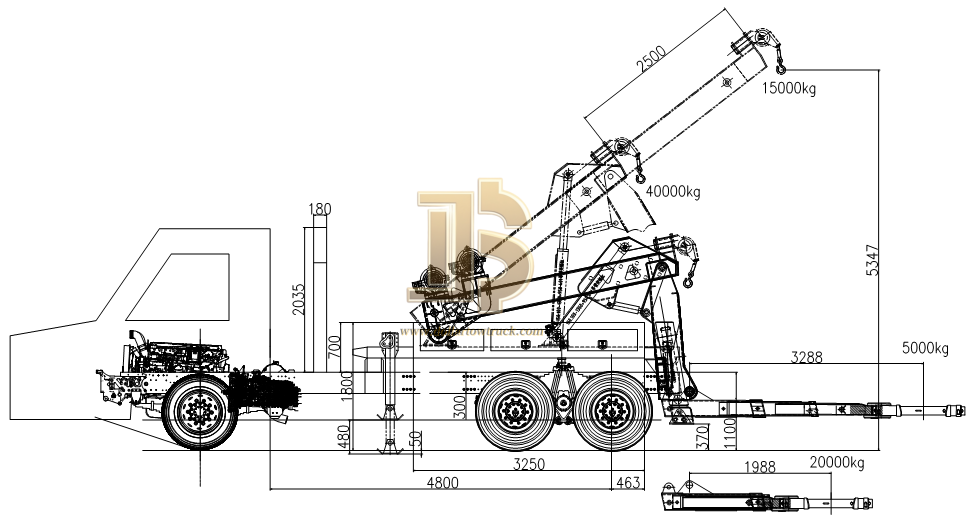

Line Drawing

NOTE: Configuration is subject to local laws and regulations. All information in this document is for reference purposes only. Optional configuration might be shown.

Logo

capacity

Boom Lift Rating: 50,000 kgs (110,000 lbs)

Winch(First Layer): 25,000 kgs (55,000 lbs) x 2 winches

Cable: 60 m (200)

Wheel Lift Extended Rating: 12,000 kgs (26,500 lbs)

Tow Rating: 50,000 kgs (110,000 lbs)

All ratings are based on structural and design factors only. Vehicle chassis capacity and capabilities can vary significantly, affecting the overall performance and rating of the unit. All chassis specifications are minimums, heavier specifications may be required depending on chassis and equipment weights. Please contact your nearest distributor for additional information.

Hubei Dollar Tow Trucks Co. reserves the right to change, improve or modify products, which may change the specifications, models and feature availability at any time without notice and without obligation. Please contact your nearest distributor for additional information.
