16T30D

Logo

Maneuverability and capacity

Combining maneuverability and heavy capacity, the 16T30D is one of the best units to work with everyday, anywhere. This unit is designed for owners and operators who work every day in very tight environments.

Unit weight without chassis: 30,000 kgs (66,000 lbs)

Logo

Standard Features

  • 1. Planetary winch with cable tensioner.
  • 2. Integrate boom and wheel lift system.
  • 3. Steel independent light pylon with lights.
  • 4. Left and right side manual control system.
  • 5. Cross bar, 1 set.
  • 6. Forks, 4 pairs.
  • 7. Fork holders, 1 pair.
  • 8. Tow chain, 1 set.
  • 9. Yellow LED light bar, 1 set.
  • 10. Binding straps, 4 sets.
  • 11. Hydraulic oil tank with gauge, 1 set.
  • 12. Left side and right side steel toolboxes with chrome door handles and removable rails.
  • 13. Rear legs with mud fork, 1 pair.
  • 14. (Steel) Paint: First time iron red anti-rust paint, second time gray middle paint, third time and forth time standard color paint.

Logo

Options

  • 1. Wireless remote control.
  • 2. Front Legs or Outriggers.
  • 3. Rear Outriggers.
  • 4. A type auxiliary wheels.
  • 5. Bigger winches.
  • 6. Counterweight.
  • 7. Extra forks and fork holders.
  • 8. Fold or straight crane.
  • 9. Full recovery tool package.
  • 10. X-shape side puller.
  • 11. LED lights – thinner light bar, night working lights, strobe lights, lights inside toolbox.
  • 12. Back-up lights & alarm.
  • 13. Rear Camera & Monitor.
  • 14. D rings on Tailboard & Boom & Legs.
  • 15. Customized toolboxes (Toolboxes shape, material, etc).
  • 16. Customized light pylon (Toolboxes shape, material, etc).
  • 17. Customized painting (Electrophoretic paint, pattern, etc) .
  • 18. Installation services and extended warranty.

Logo

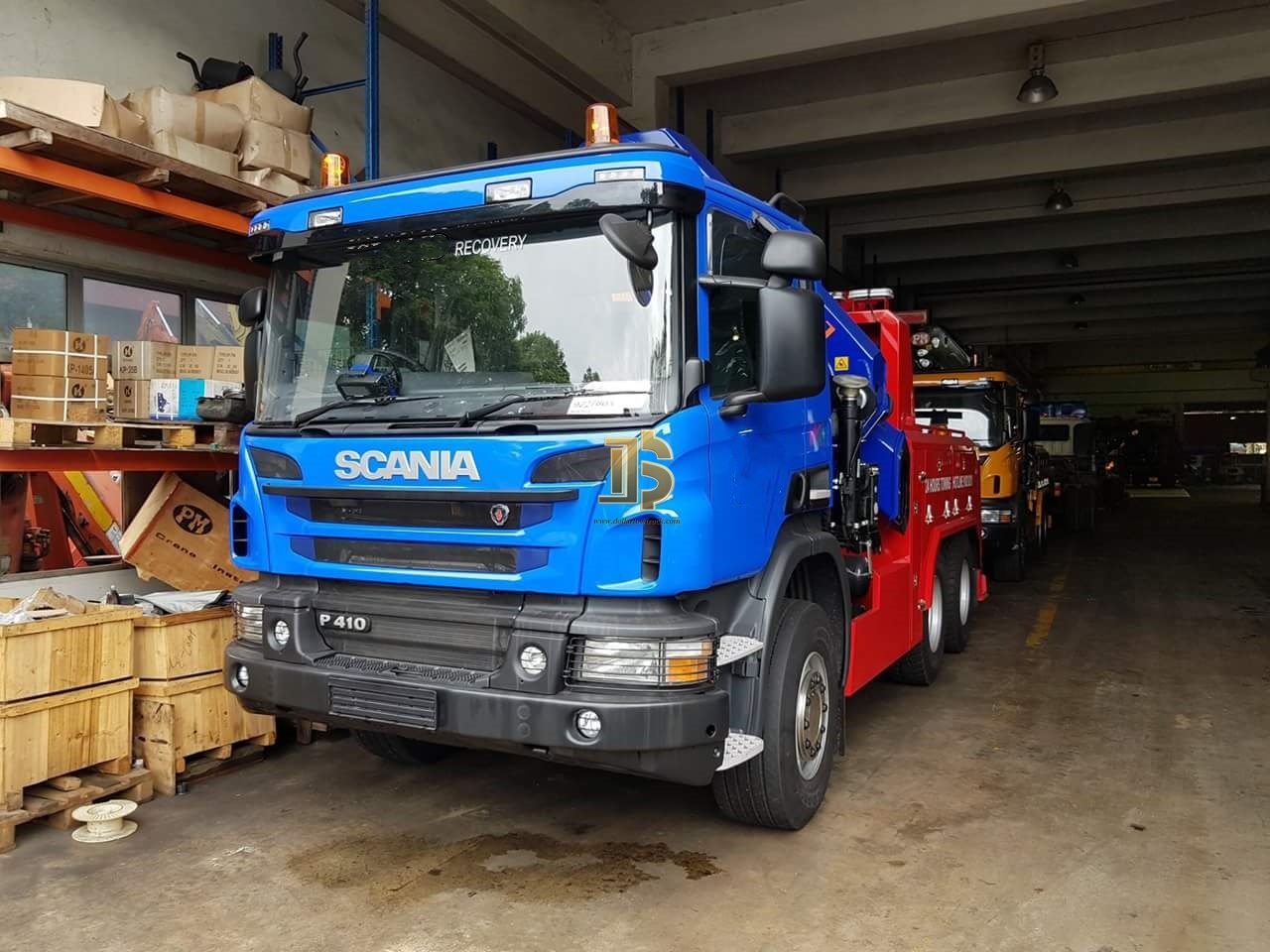

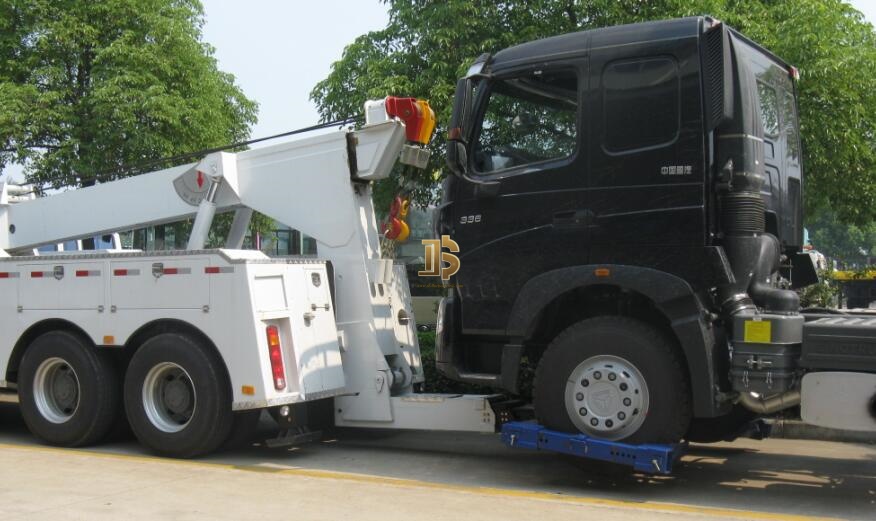

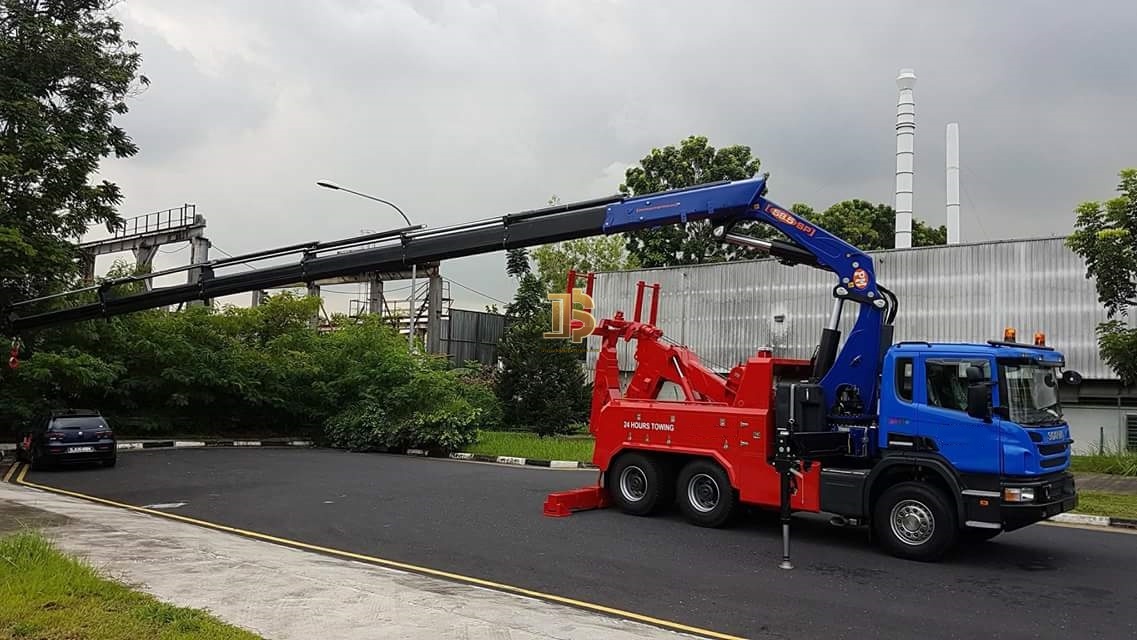

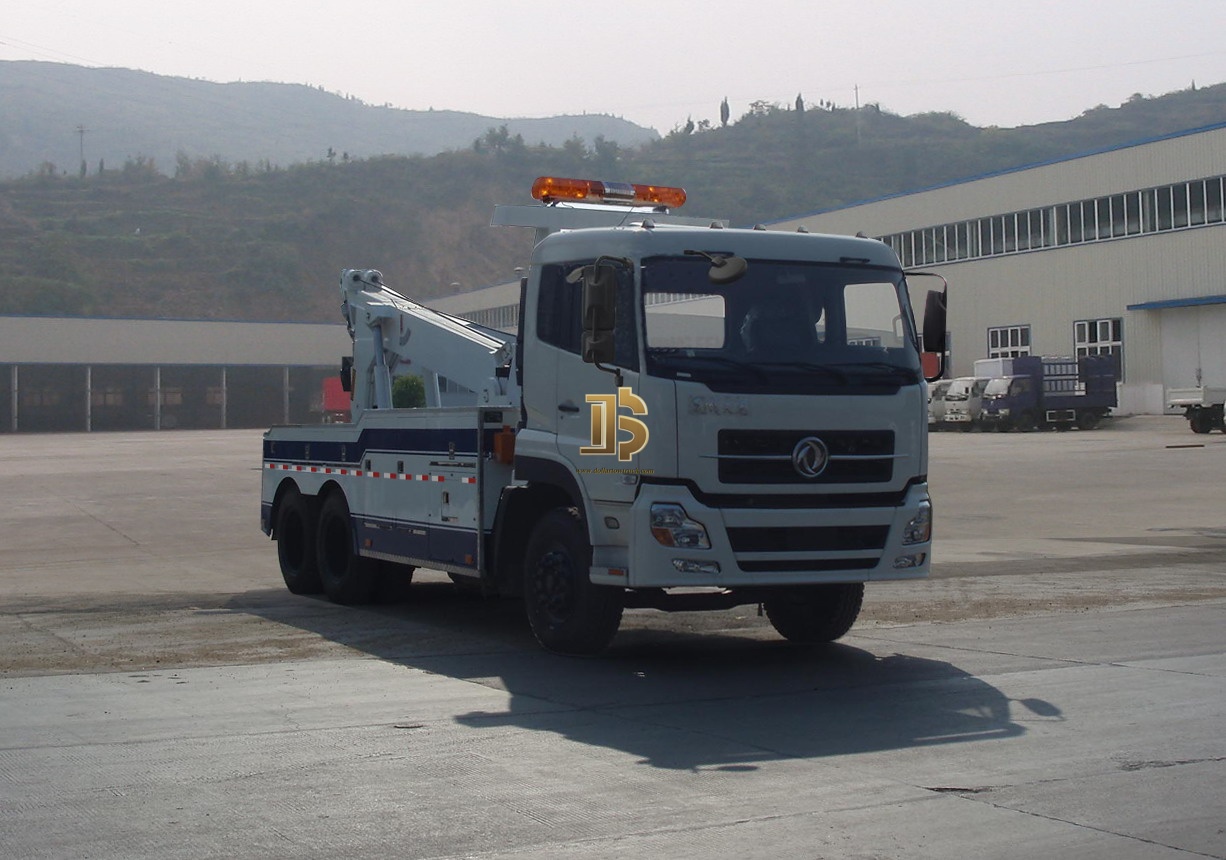

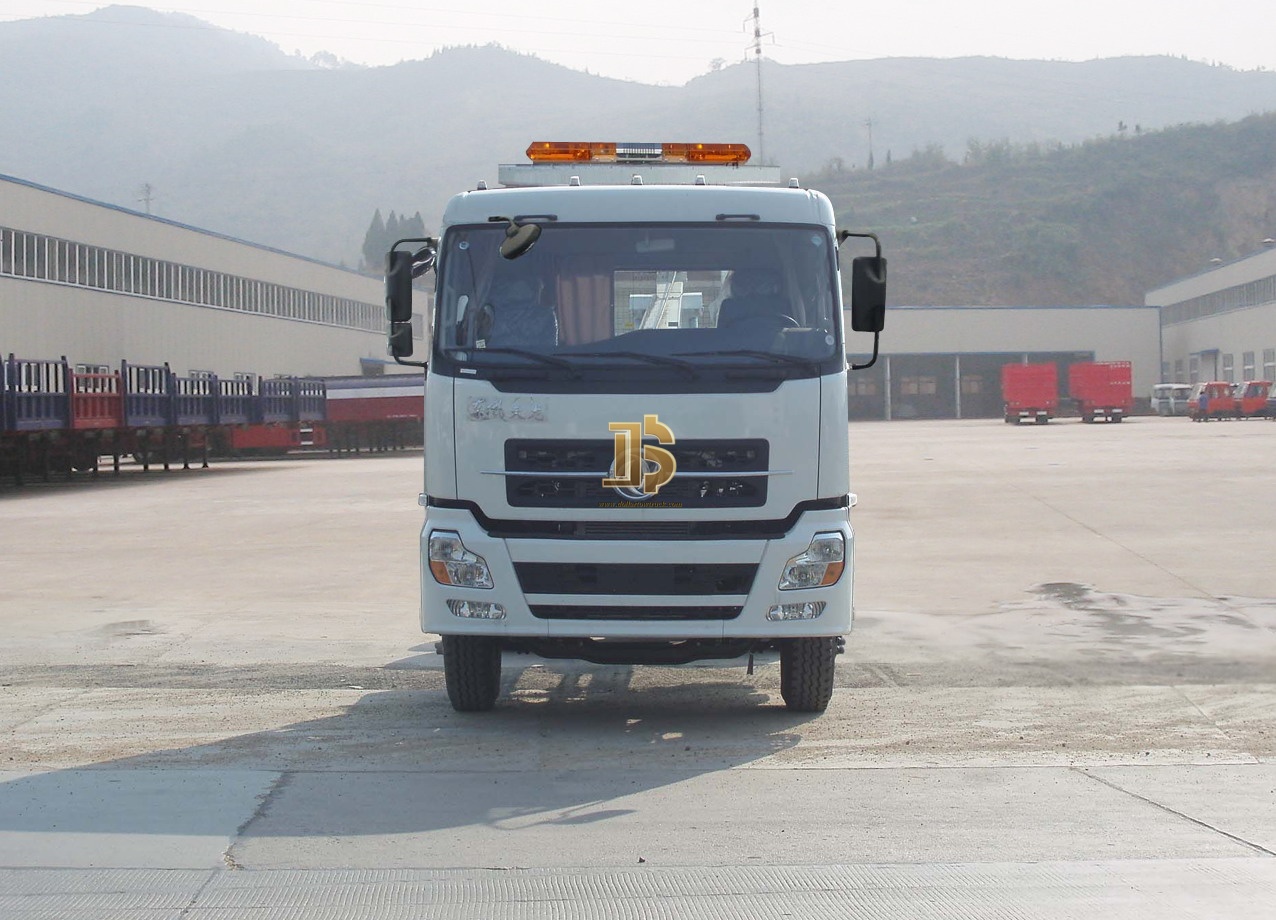

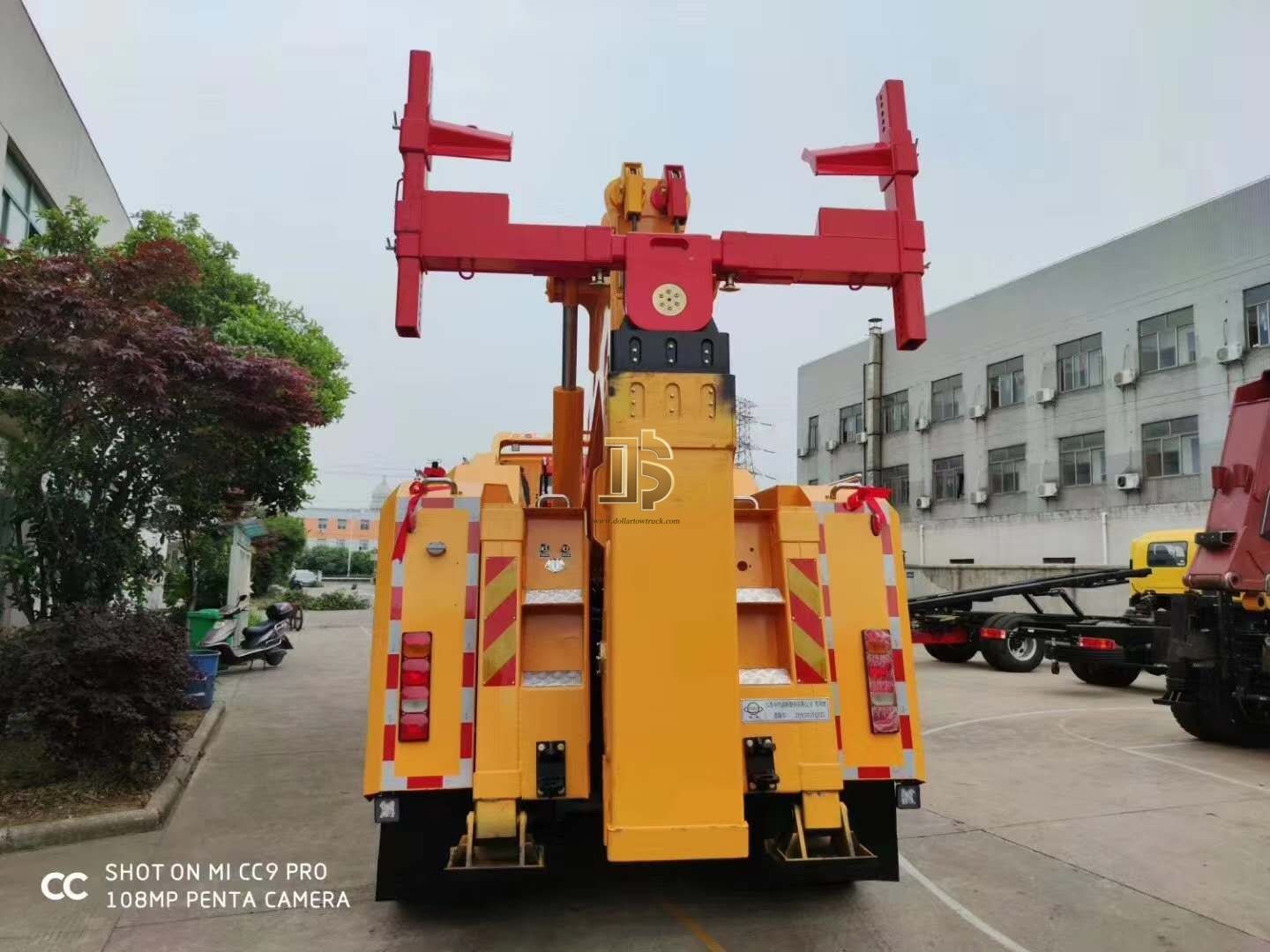

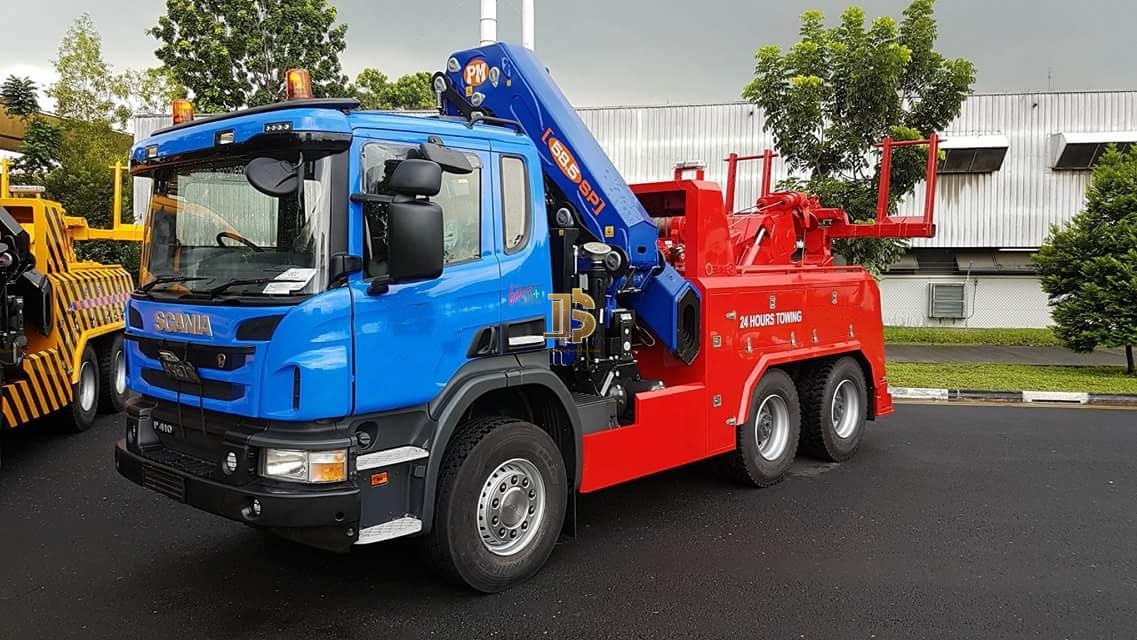

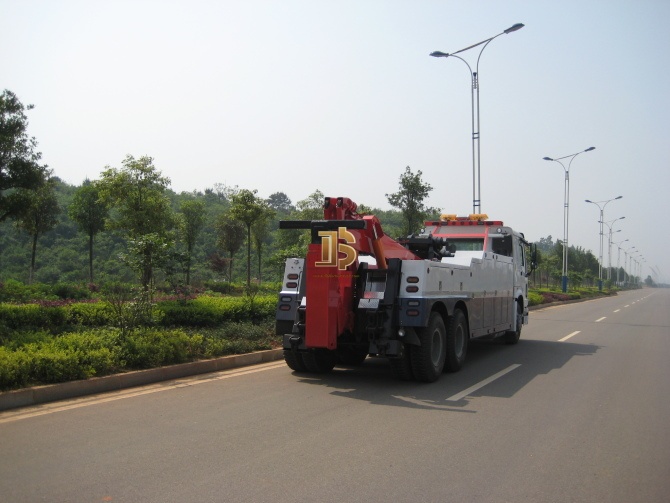

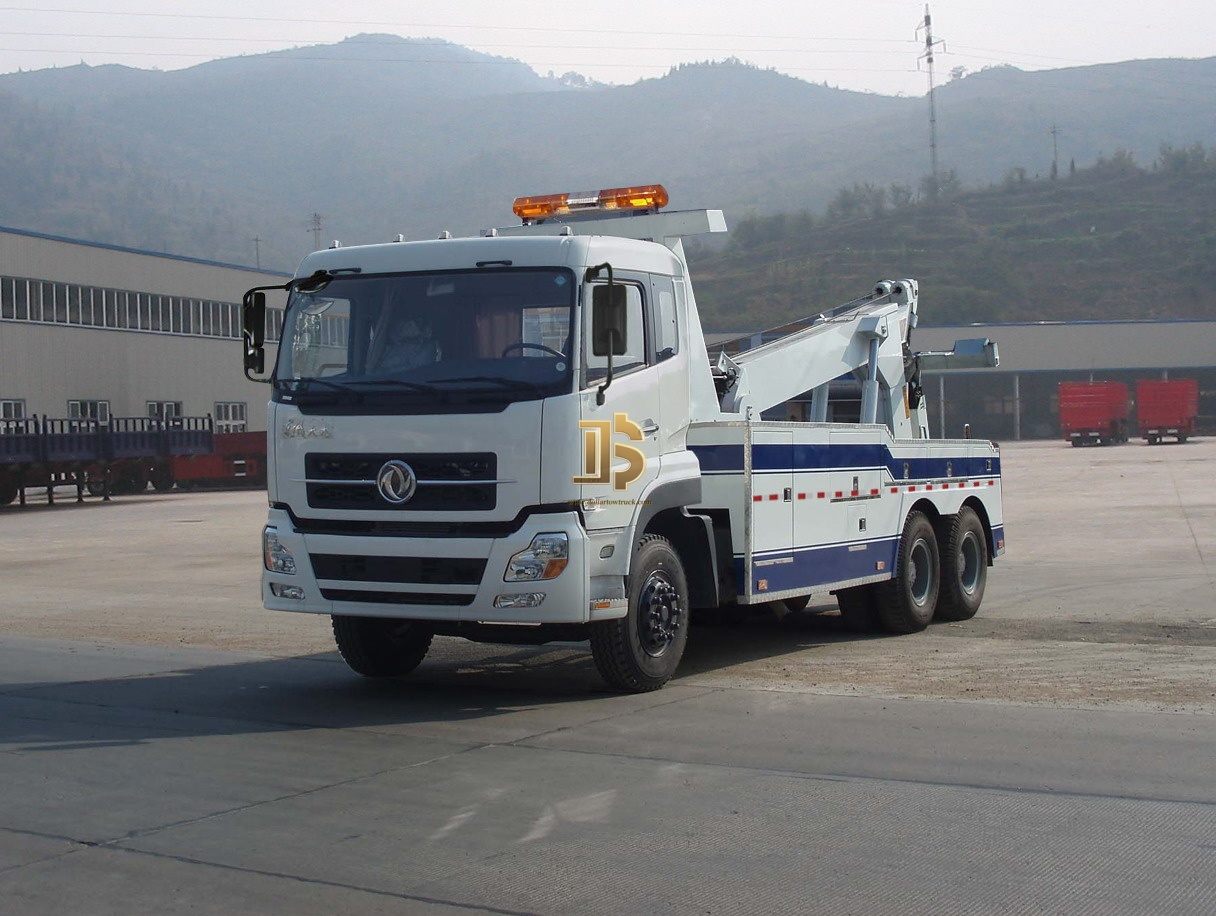

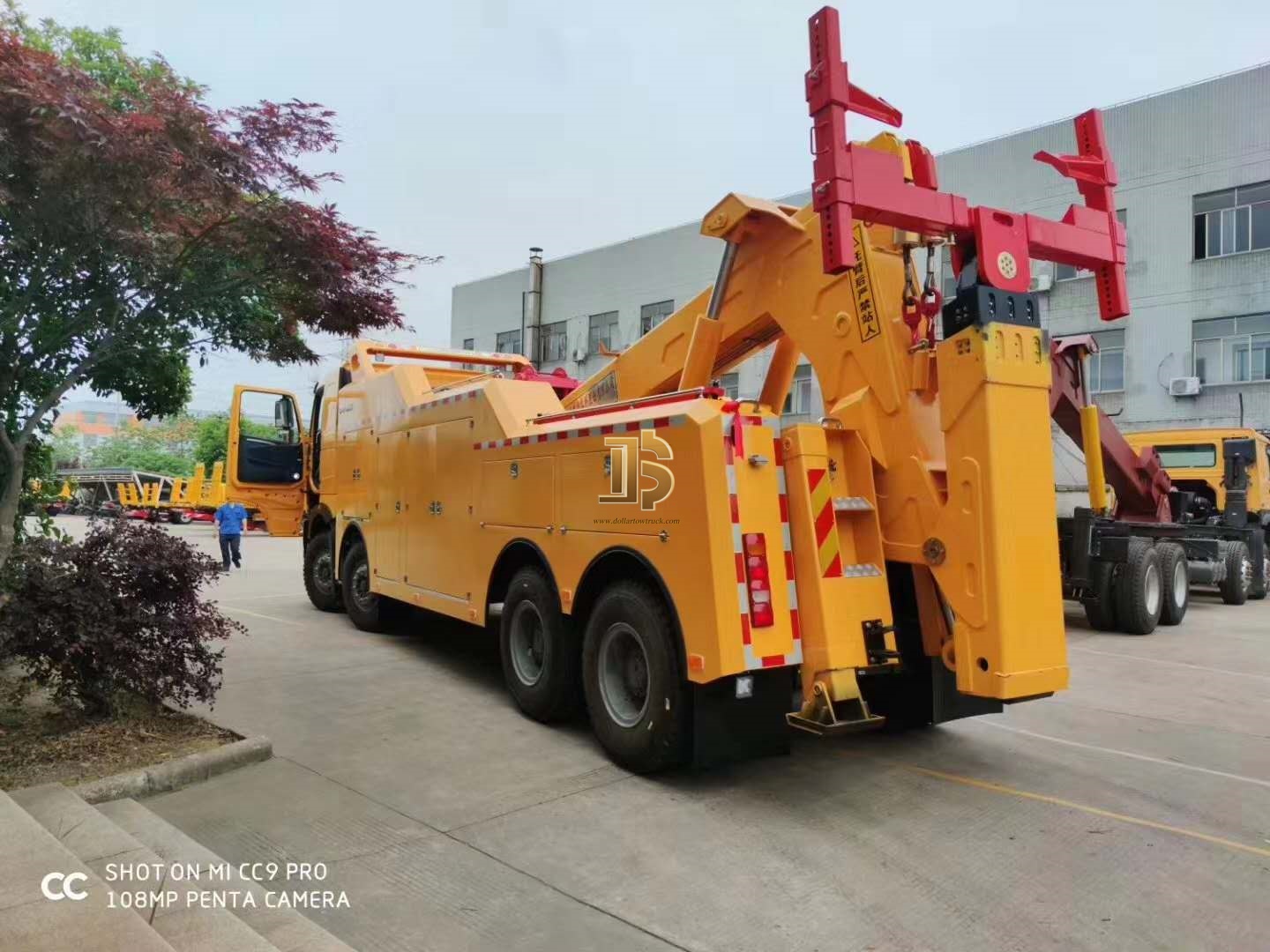

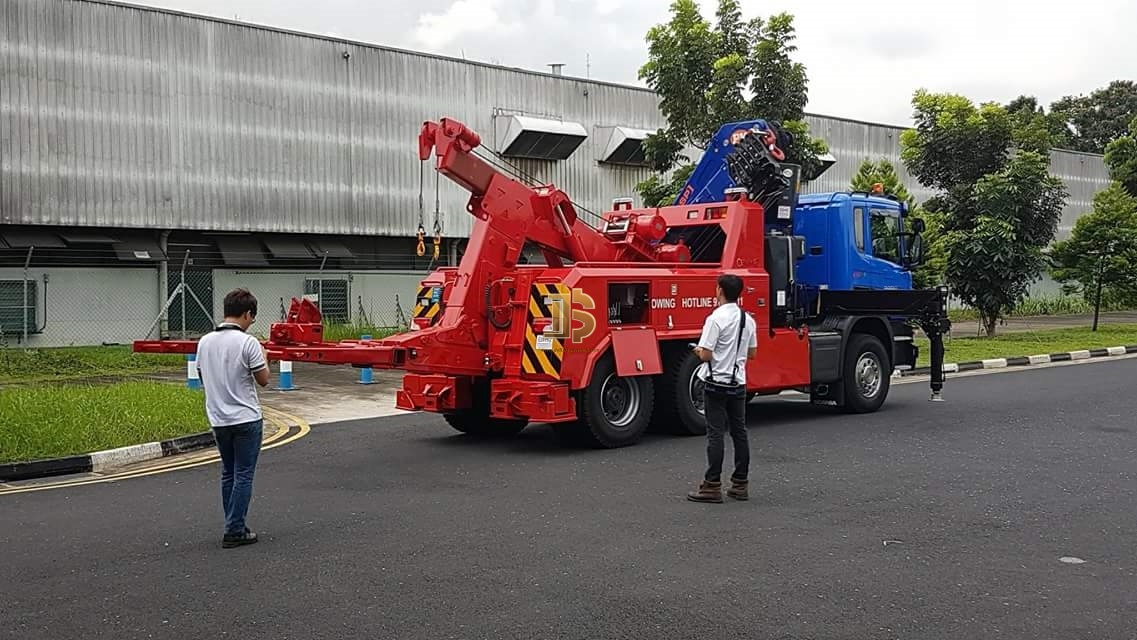

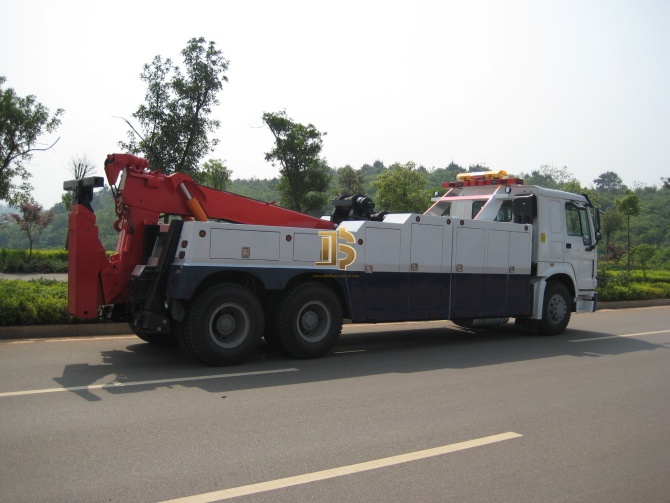

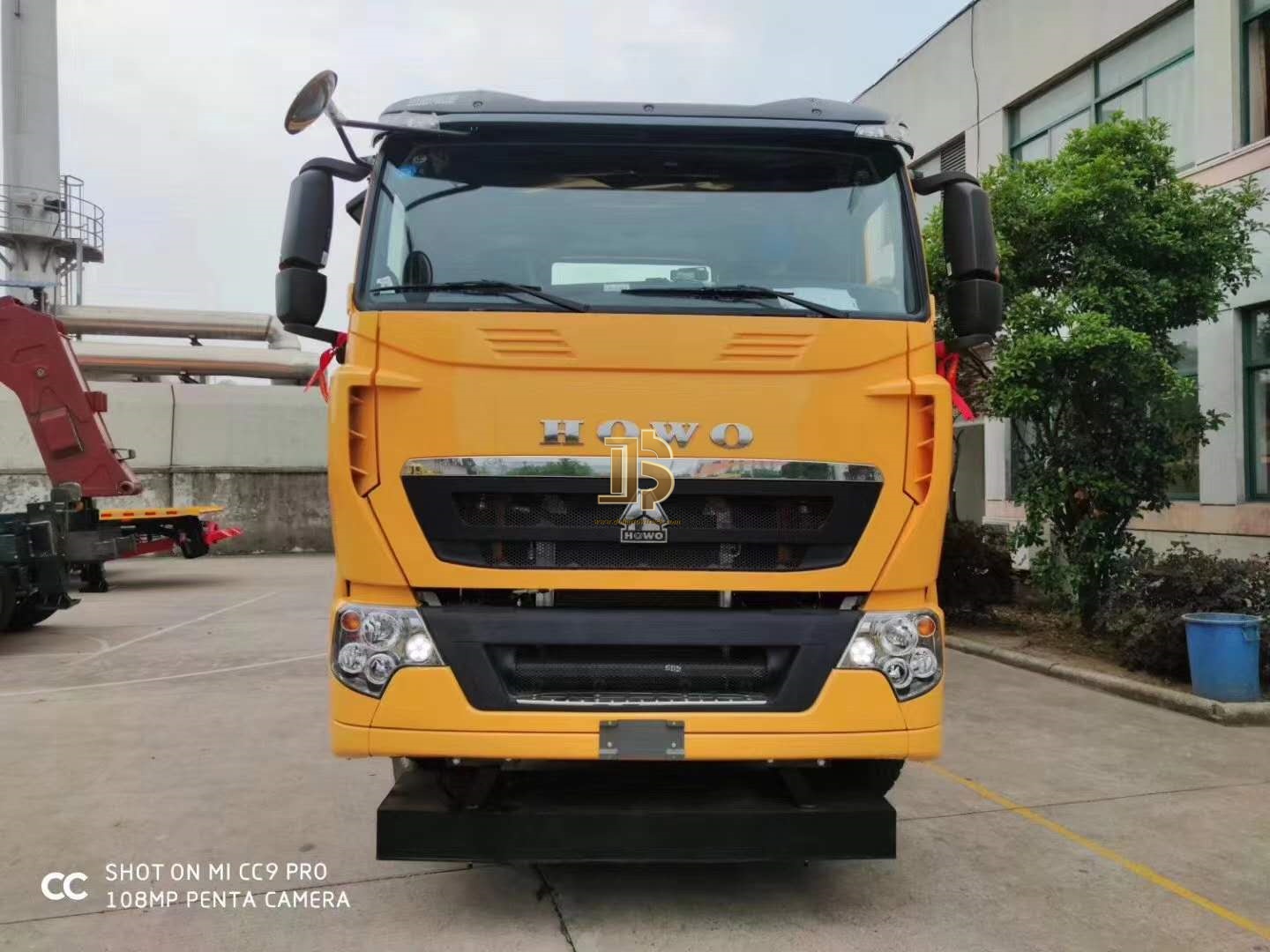

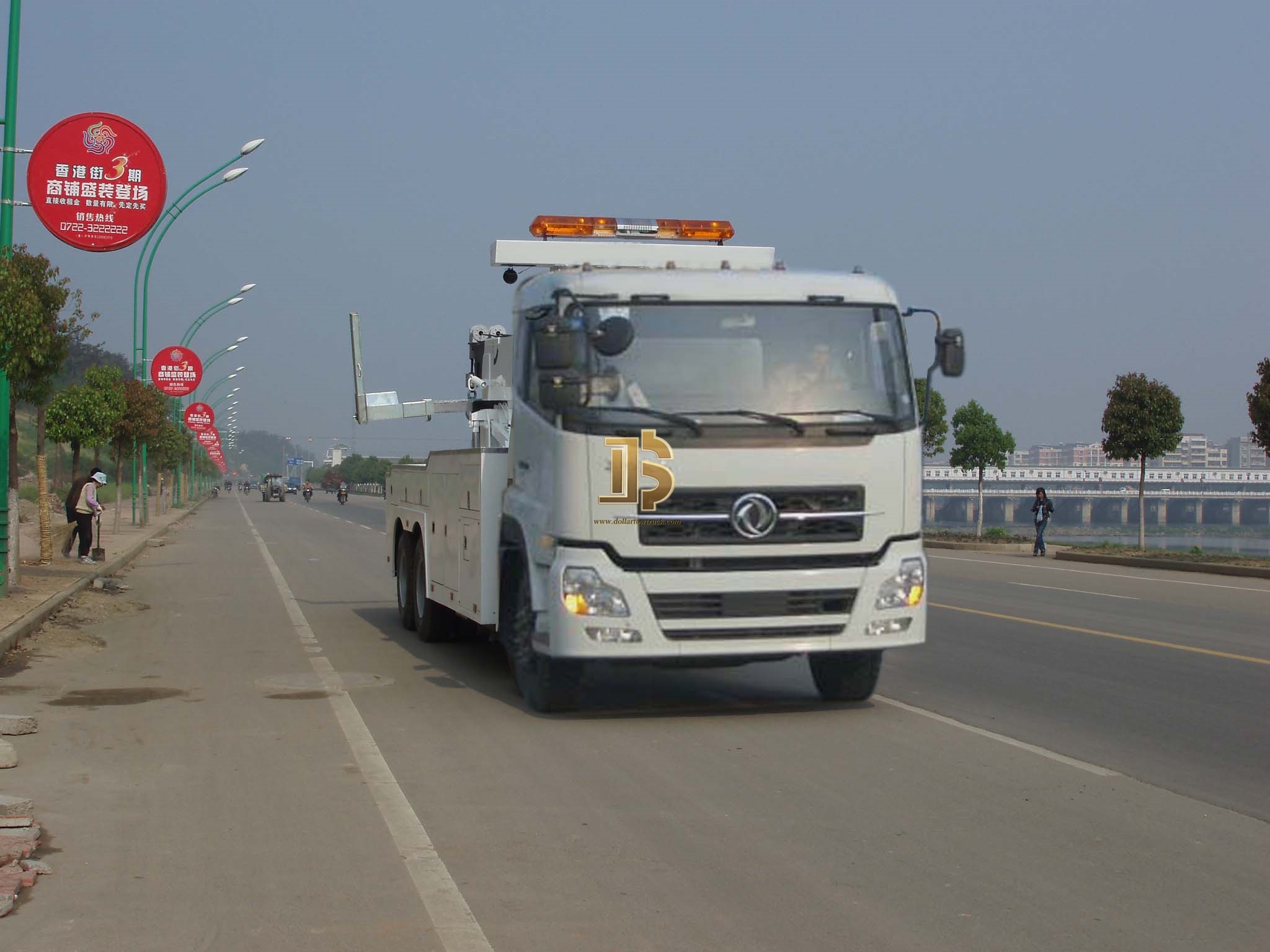

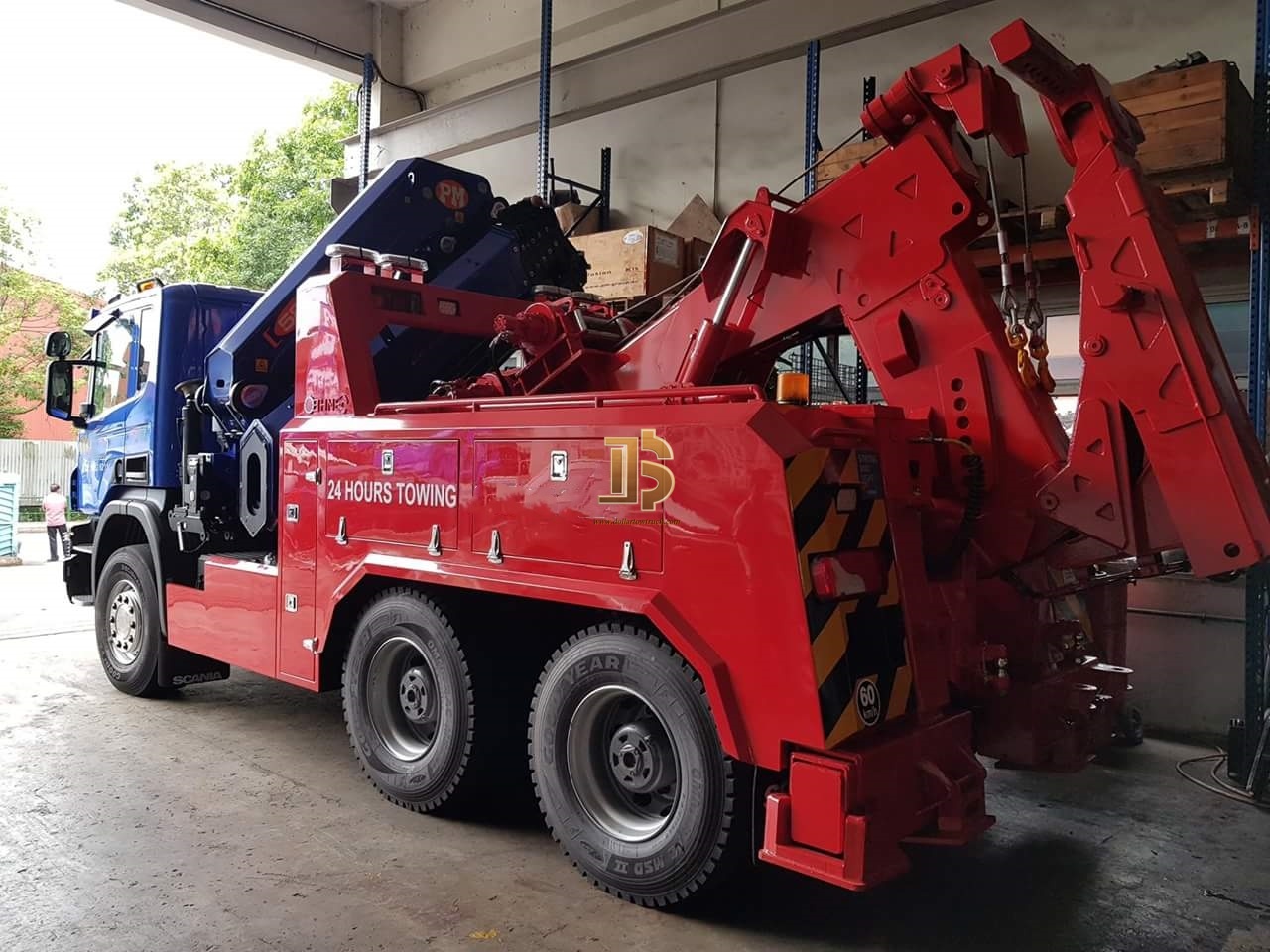

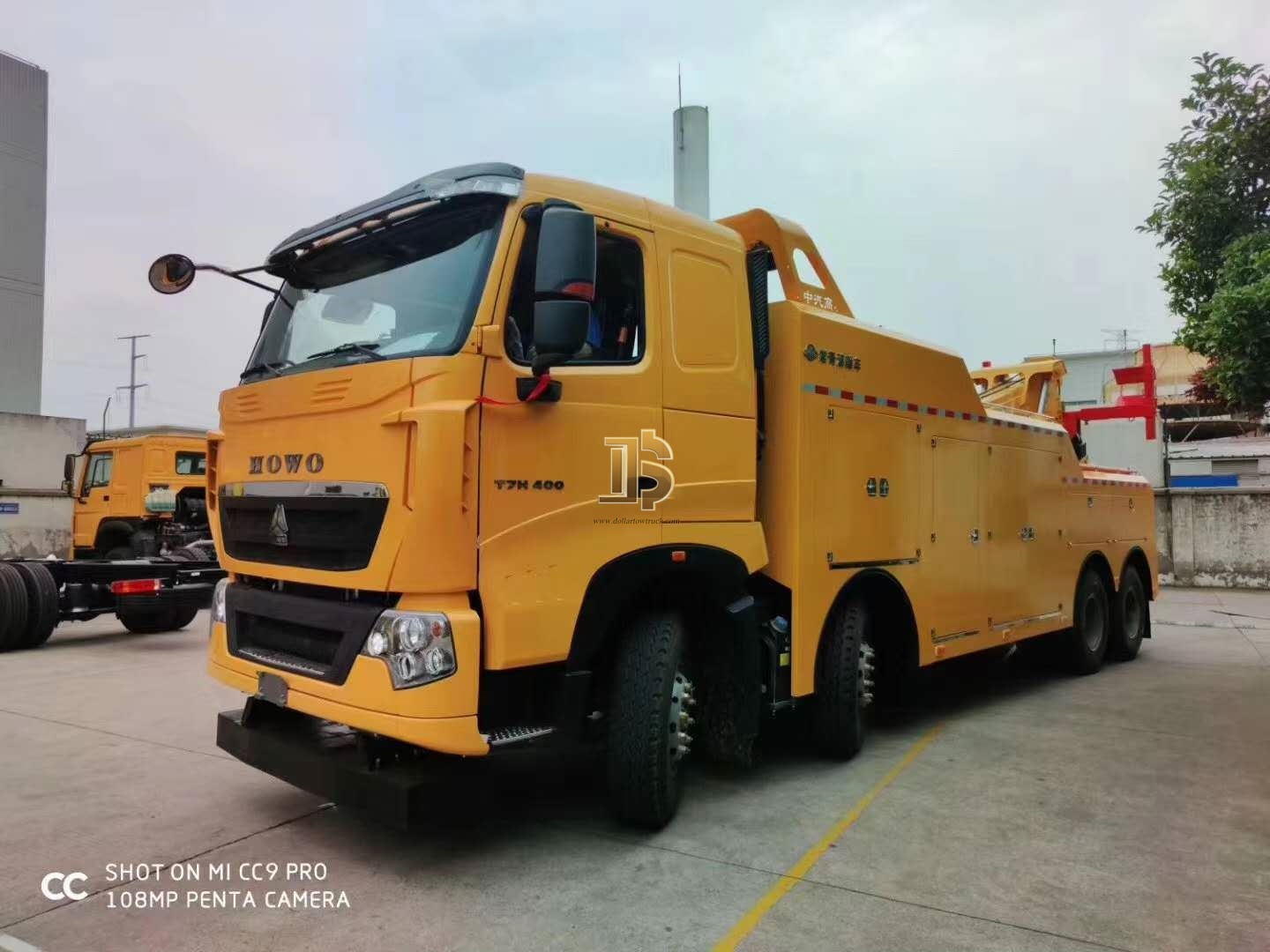

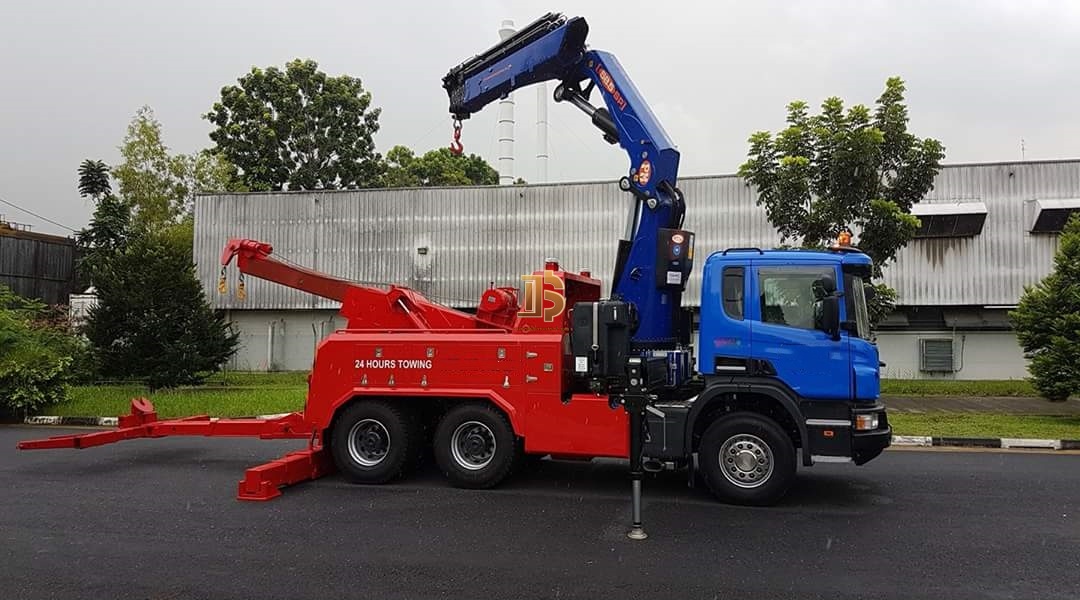

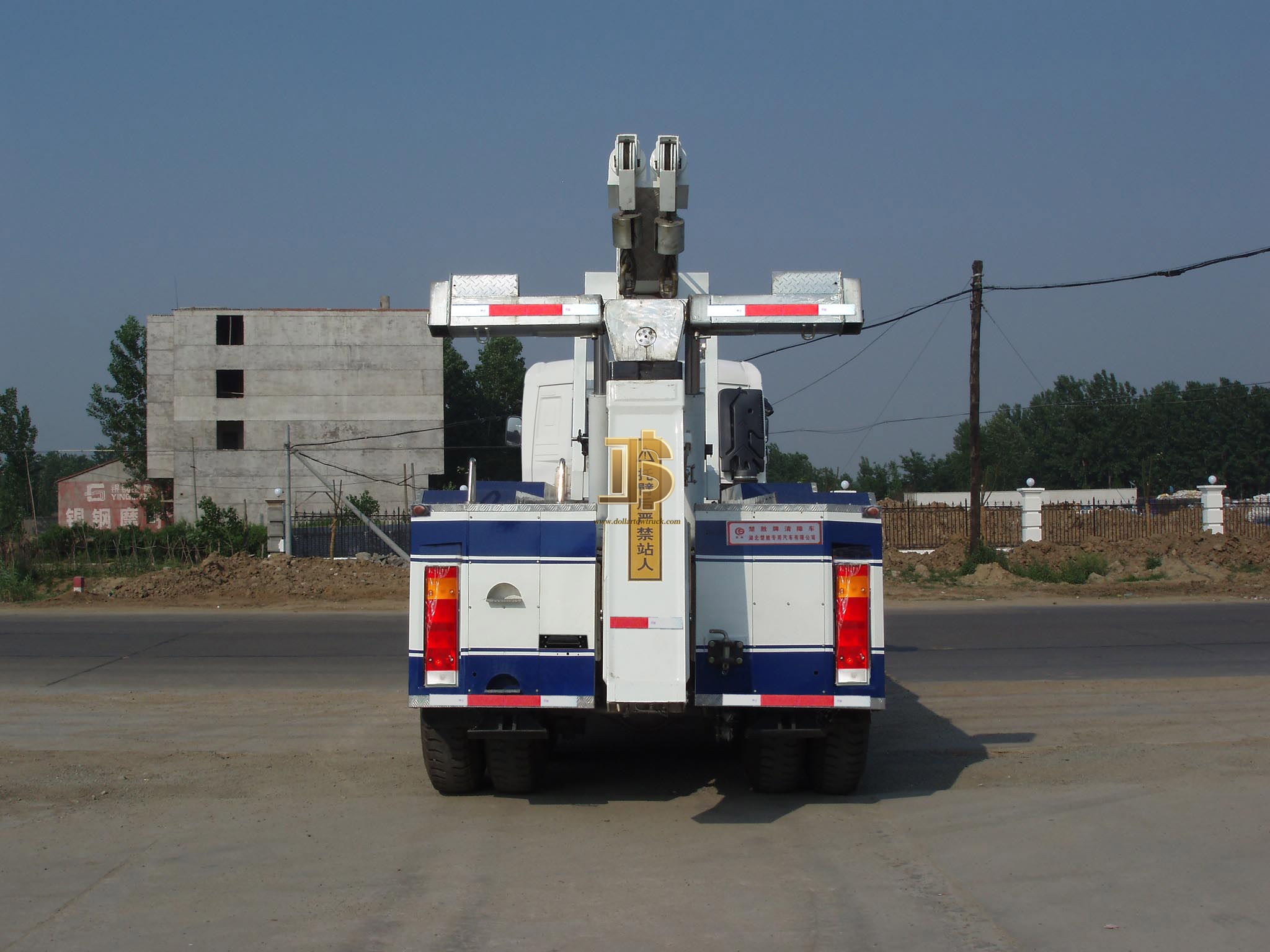

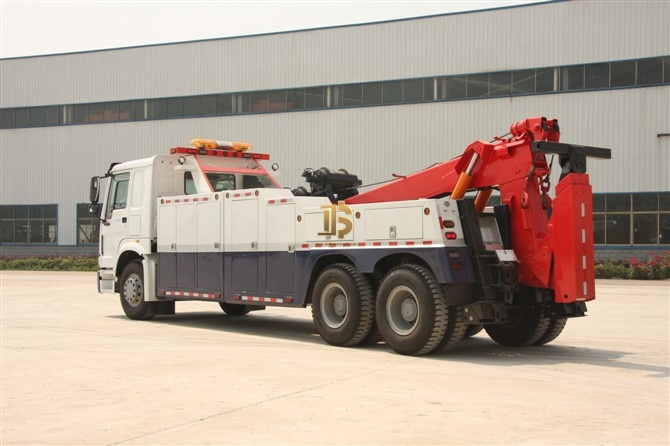

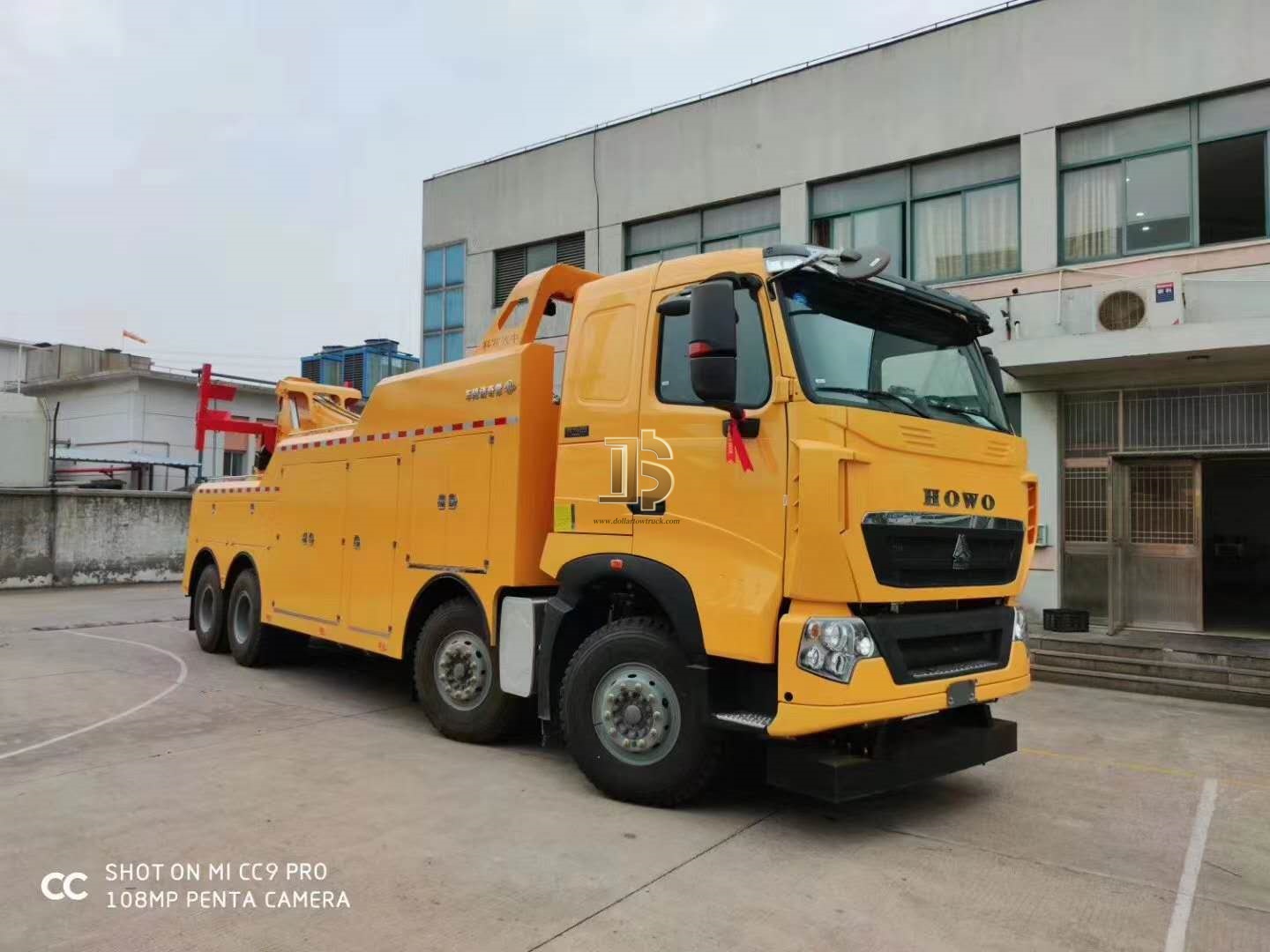

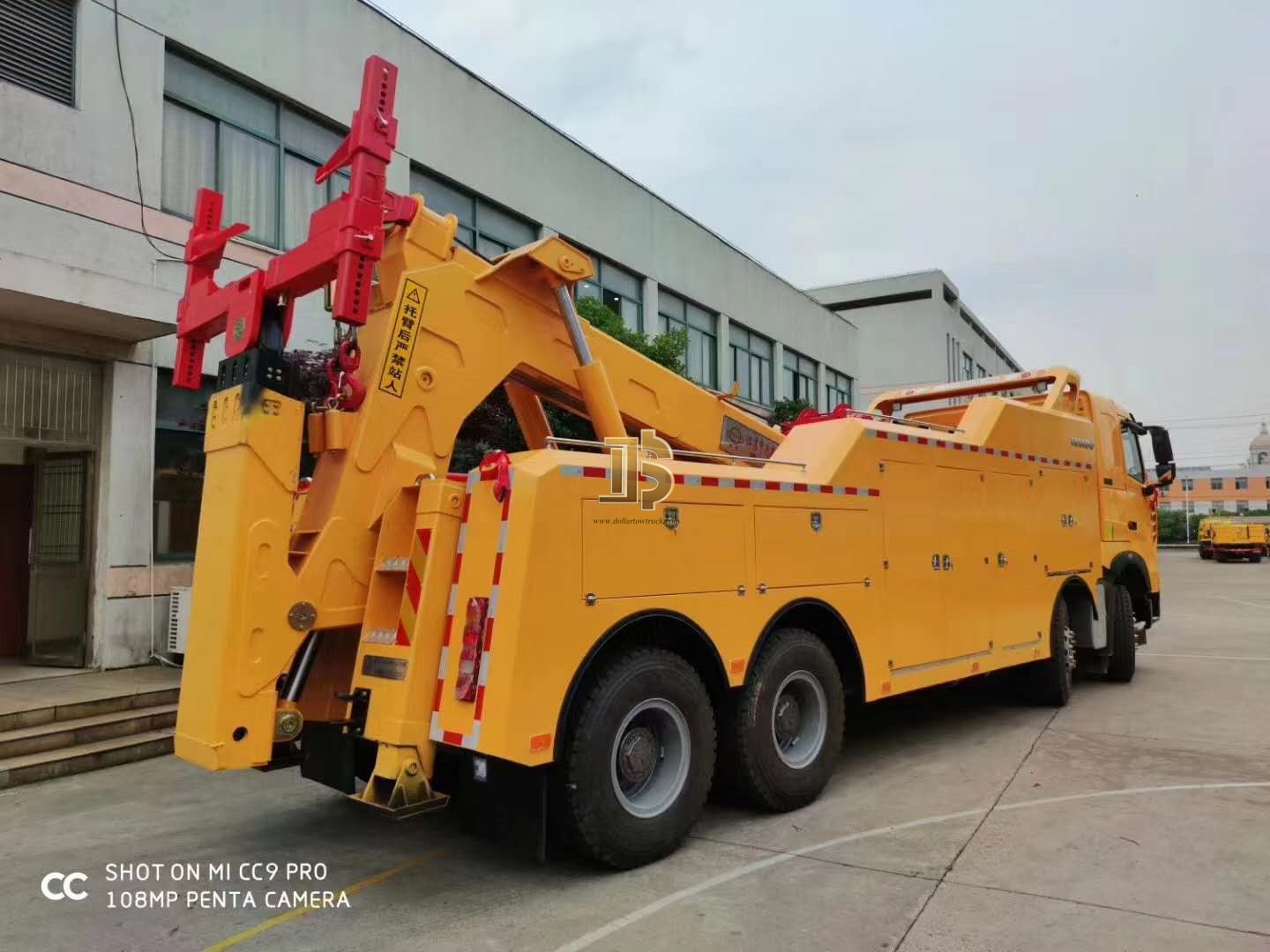

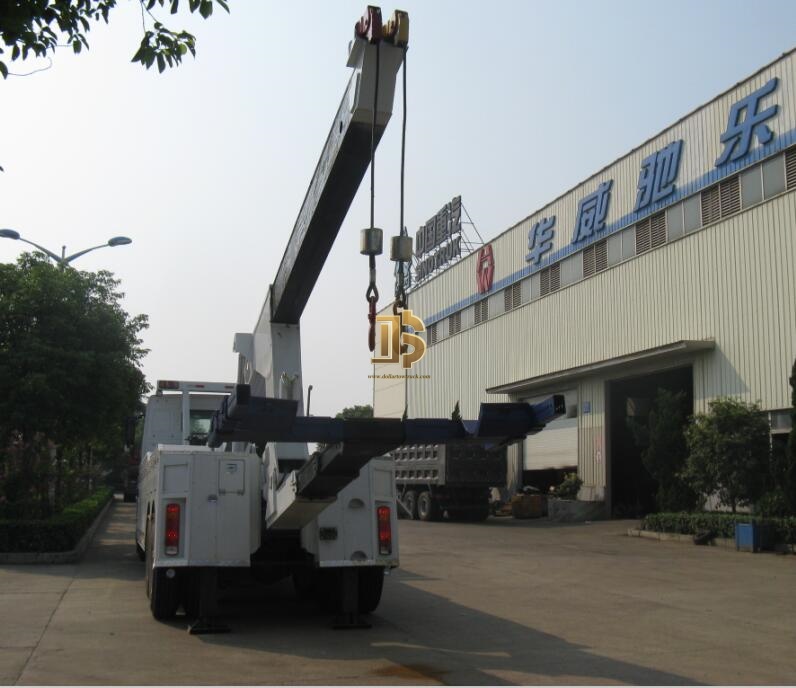

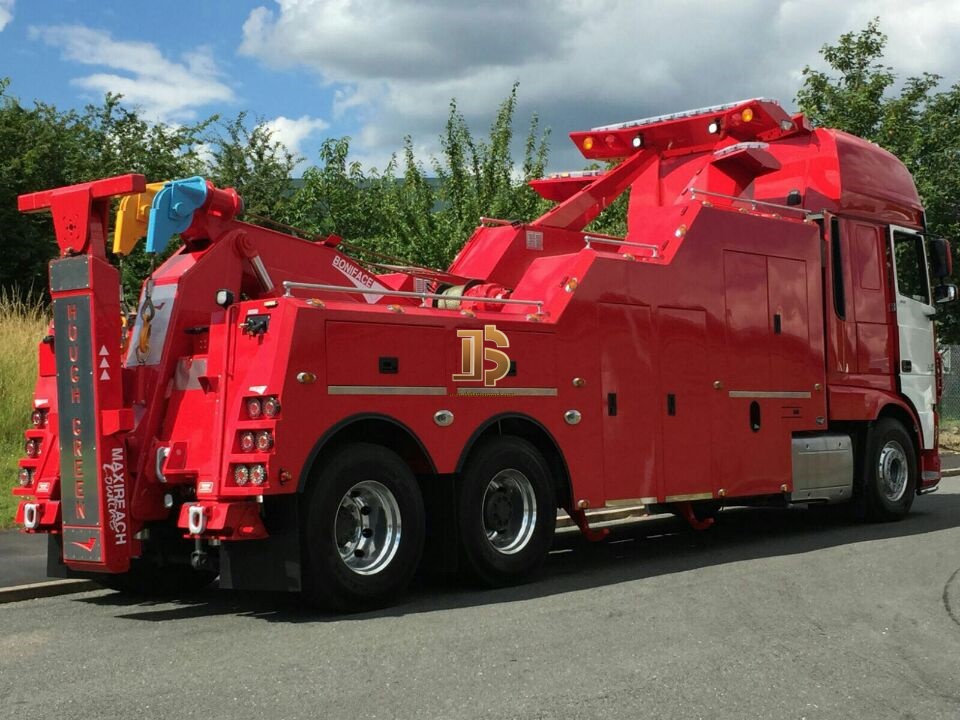

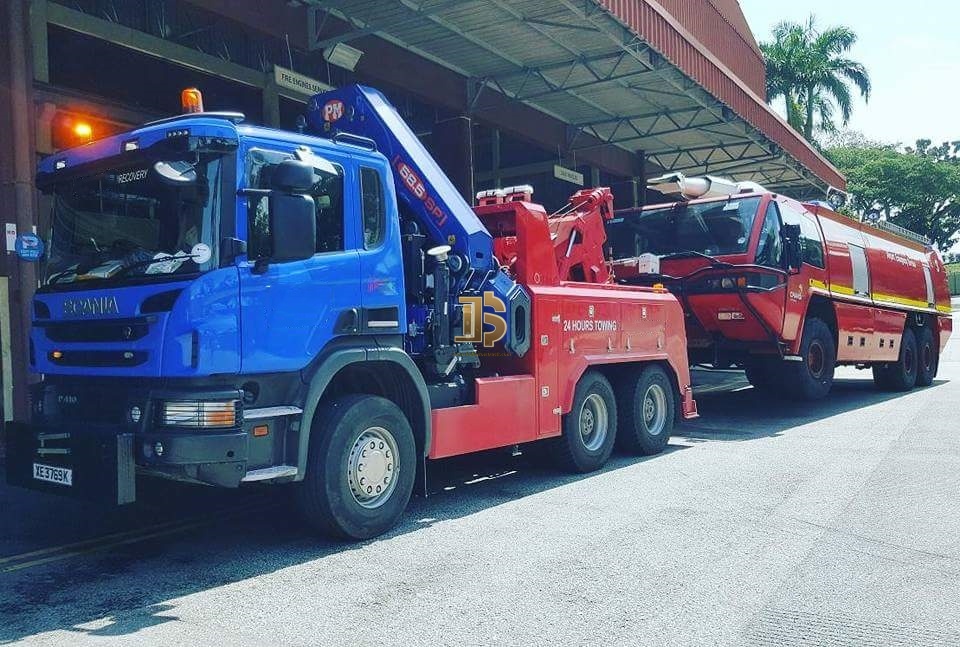

Gallery

Logo

Line Drawing

NOTE: Configuration is subject to local laws and regulations. All information in this document is for reference purposes only. Optional configuration might be shown.

Logo

capacity

Boom Lift Rating: 30,000 kgs (66,000 lbs)

Winch(First Layer): 15,000 kgs (33,000 lbs) x 2 winches

Cable: 45 m (147)

Wheel Lift Extended Rating: 11,000 kgs (24,250 lbs)

Tow Rating: 30,000 kgs (66,000 lbs)

All ratings are based on structural and design factors only. Vehicle chassis capacity and capabilities can vary significantly, affecting the overall performance and rating of the unit. All chassis specifications are minimums, heavier specifications may be required depending on chassis and equipment weights. Please contact your nearest distributor for additional information.
