8P8T

Logo

Ultimate Economy!

The 8P8T is a great way to add versatile trucks to your fleet at a low price. The 4.5 ton capacity will give you much more capacity than a typical flatbed. It will allow you to carry medium duty trucks with ease.

Unit weight without chassis: 5000 kgs (11,000 lbs)

Logo

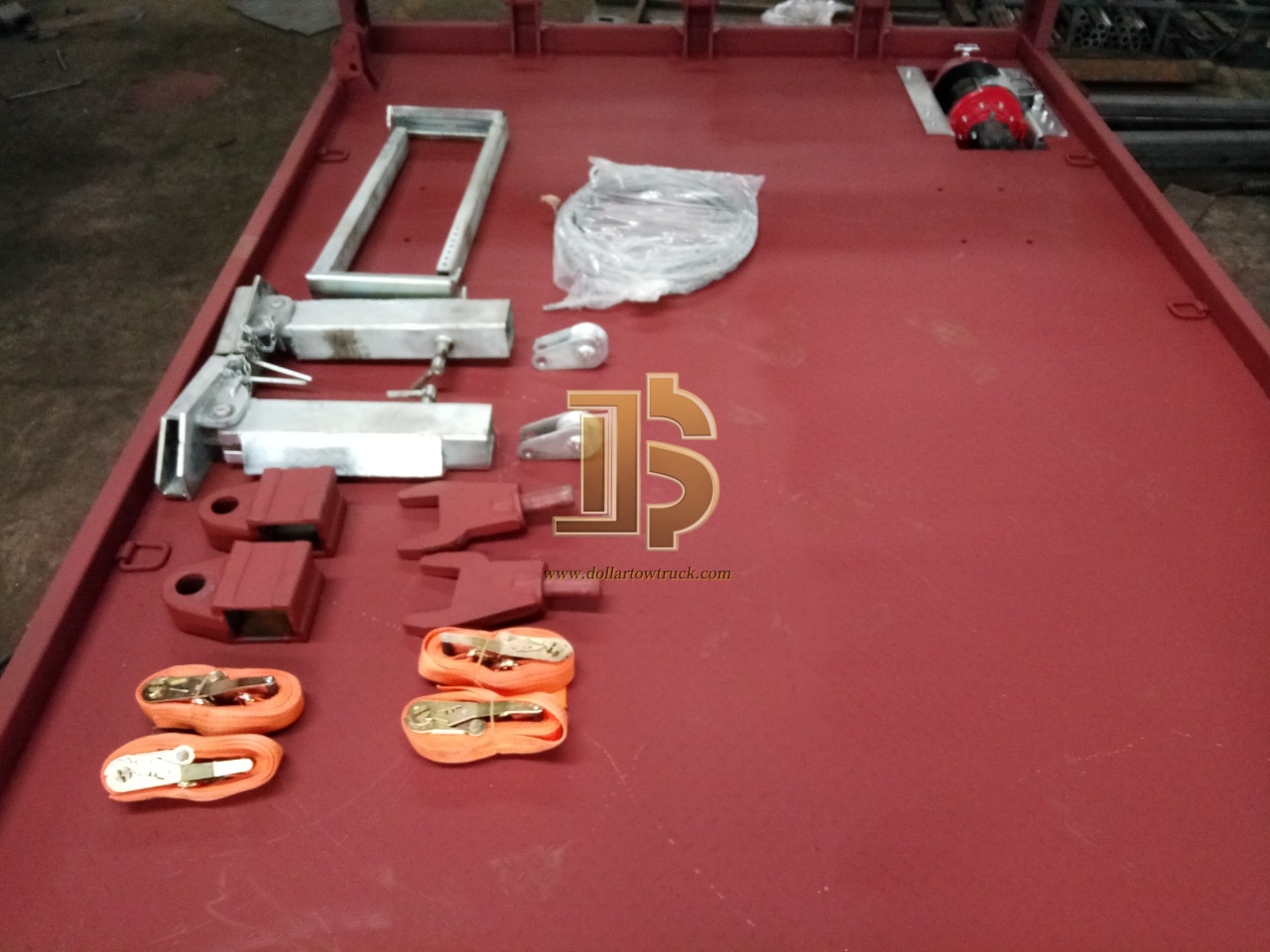

Standard Features

  • 1. Steel straight smooth tray, standard tray width 2280 mm (90).

  • 2. Planetary winch with cable tensioner.
  • 3. Steel independent light pylon with lights, 1 sets.
  • 4. Left and right side manual control.
  • 5. Cross bar, 1 set.
  • 6. Slide in L-Arms, 1 pair.
  • 7. Forks, 2 pairs.
  • 8. Fork holders, 1 pair.
  • 9. Tow chain, 1 set.
  • 10. B type auxiliary wheels, 1 pair.
  • 11. Yellow LED light bar, 1 set.
  • 12. Night working lights, 2 sets,
  • 13. Binding straps, 4 sets.
  • 14. Hydraulic oil tank with gauge, 1 set.
  • 15. Steel toolbox, 1 set.
  • 16. Water tank with stainless steel hand washing box, 1 set.
  • 17. Pully fixing seats.
  • 18. Chrome door handle, 1 set.
  • 19. (Steel) Paint: First time iron red anti-rust paint, second time gray middle paint, third time and forth time standard color paint.

Logo

Options

  • 1. Removable rails.
  • 2. Steel straight/fold smooth/diamond/punching tray.

  • 3. Max. tray width 2590 mm (102).

  • 4. Telescopic or fold hydraulic tail plate.
  • 5. Wireless remote control.
  • 6. Extra steel, stainless or aluminum toolboxes.
  • 7. A type auxiliary wheels, 1 pair.
  • 8. Extra Forks and fork holders.
  • 9. Fold or straight crane.
  • 10. Full recovery tool package.
  • 11. X-shape side puller.
  • 12. LED lights – thinner light bar, strobe lights, lights inside toolbox.
  • 13. Back-up lights & alarm.
  • 14. PTO.
  • 15. Customized toolboxes.
  • 16. Customized painting.
  • 17. Installation services and extended warranty.

Logo

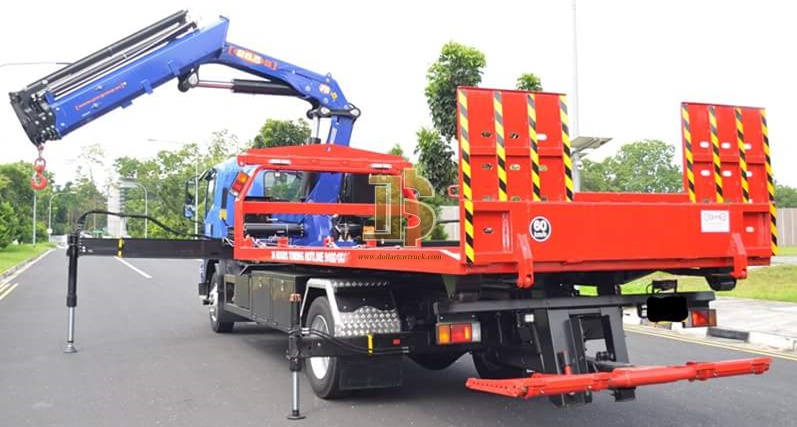

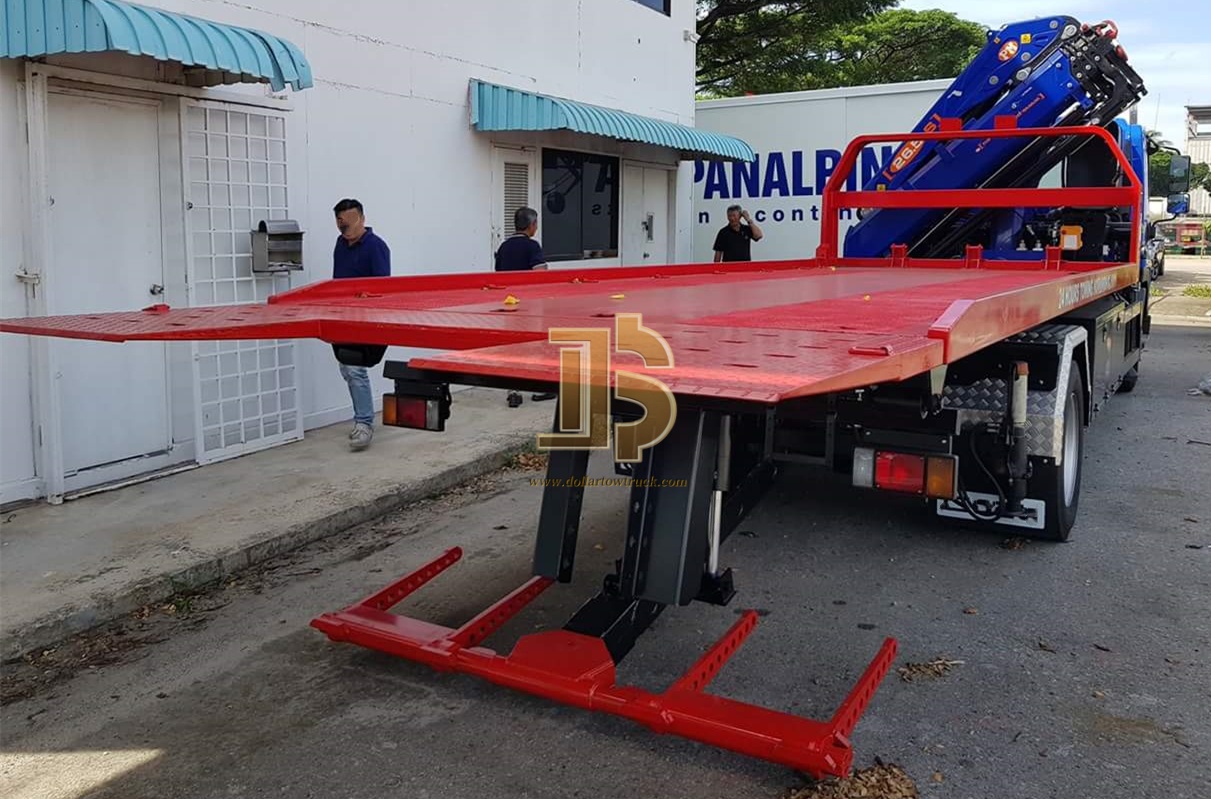

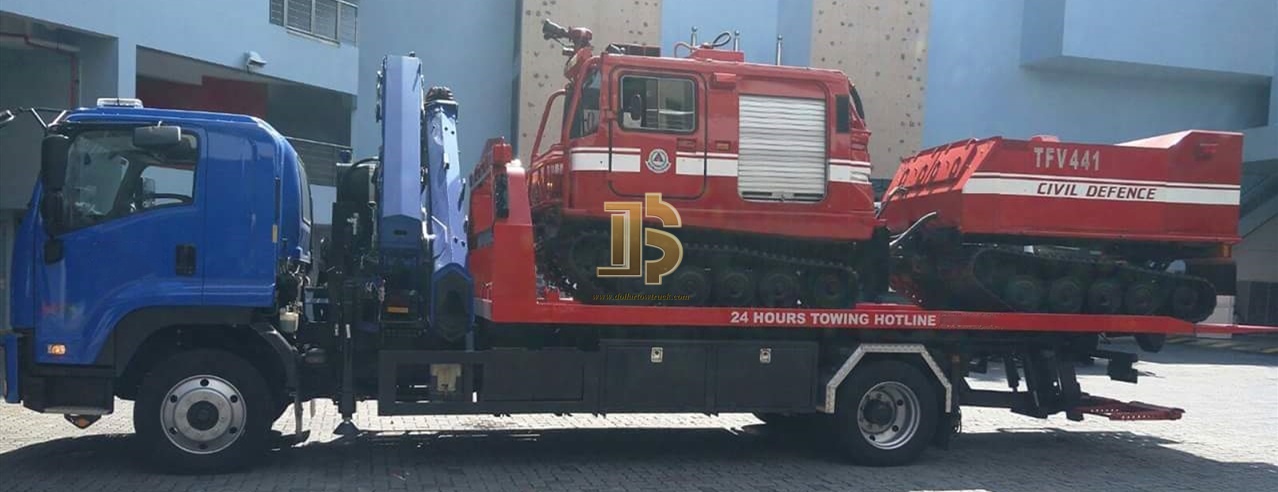

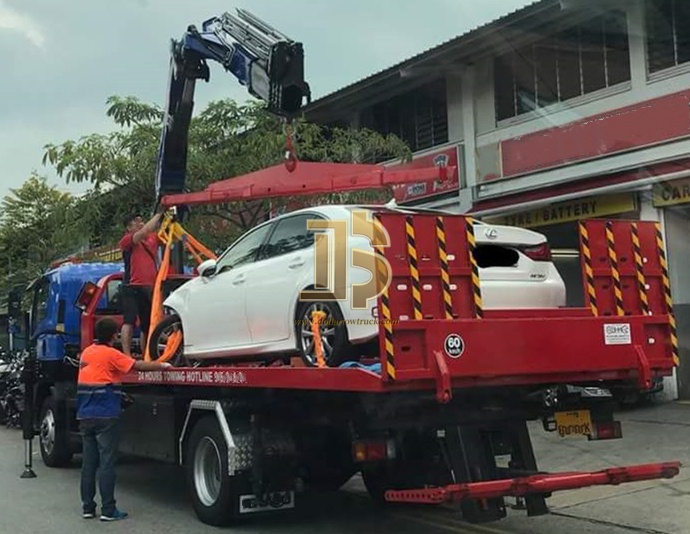

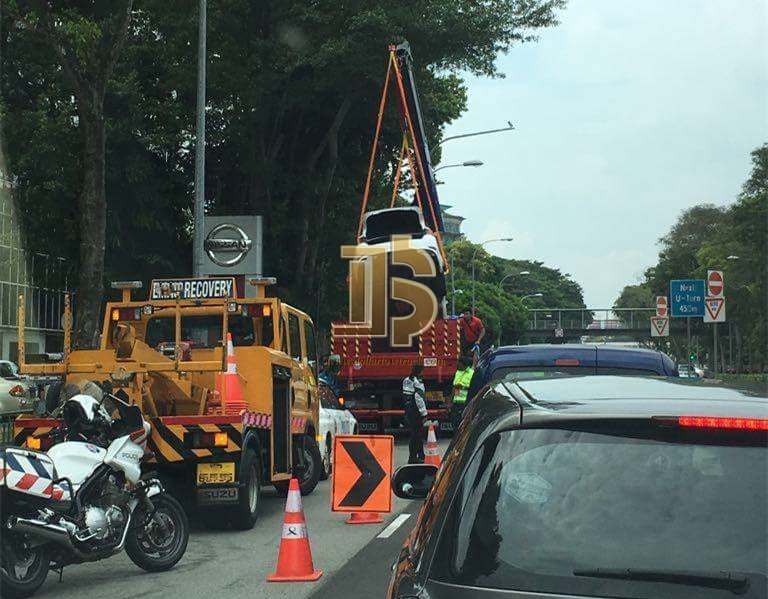

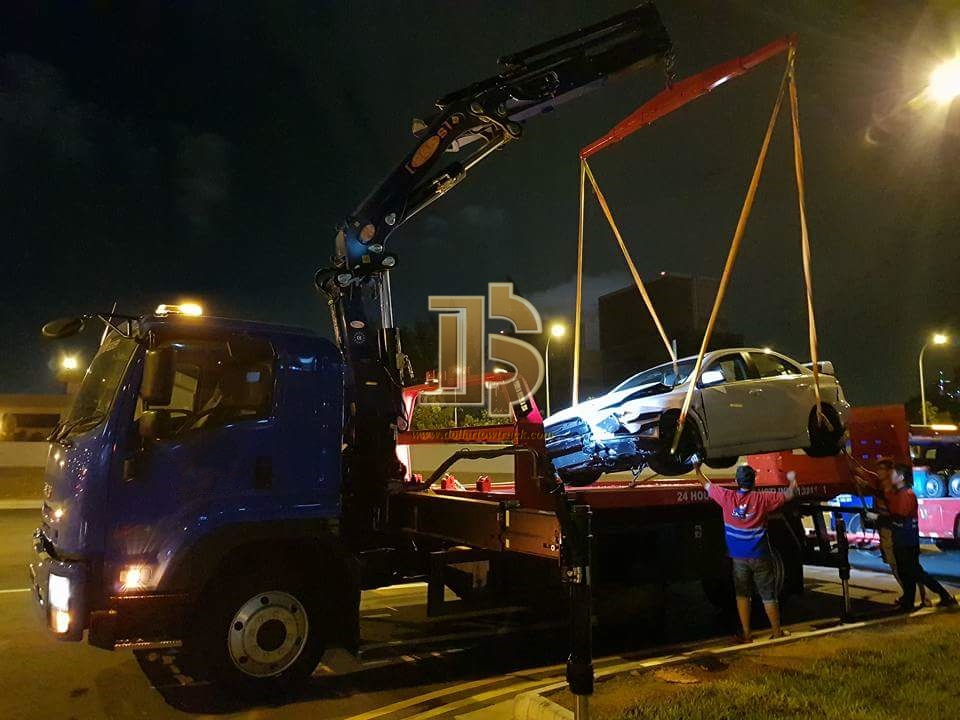

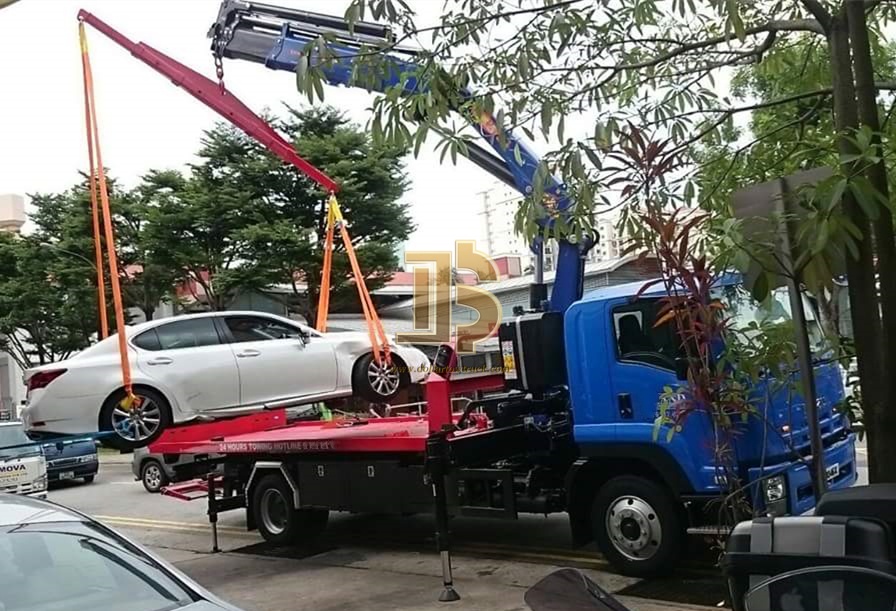

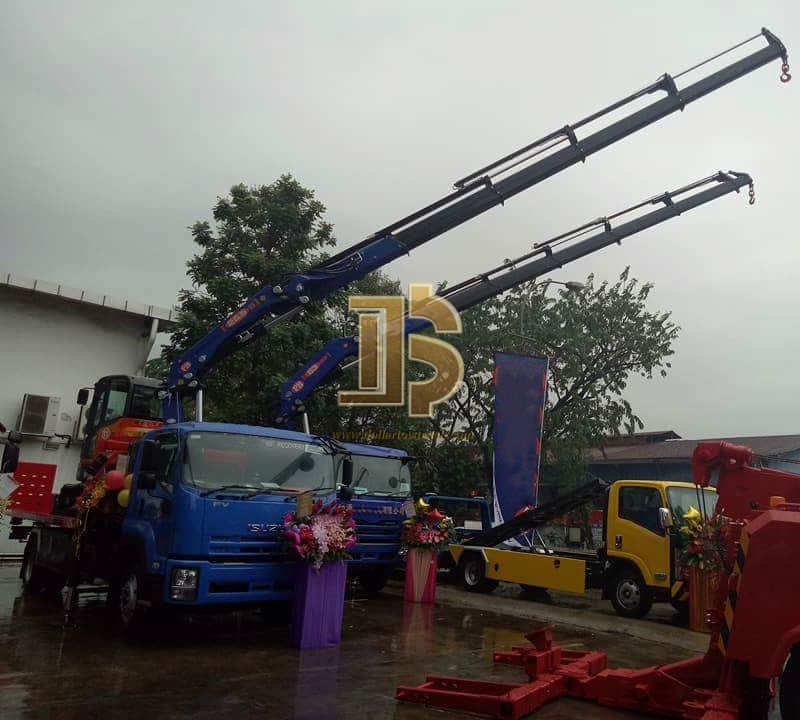

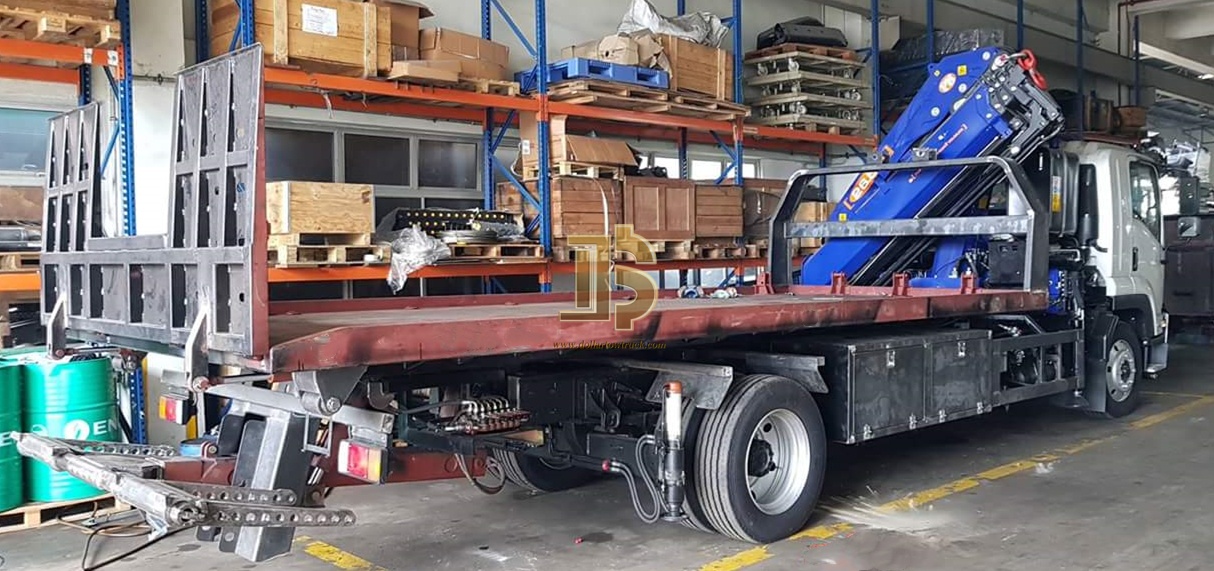

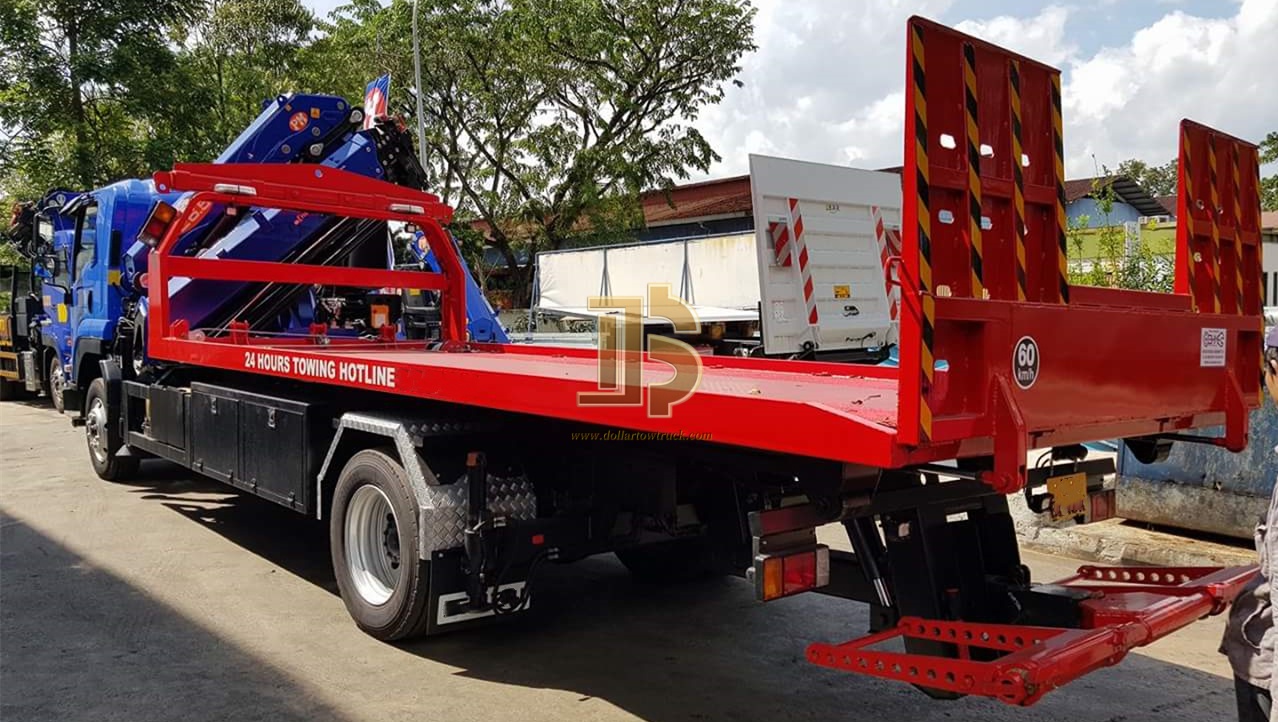

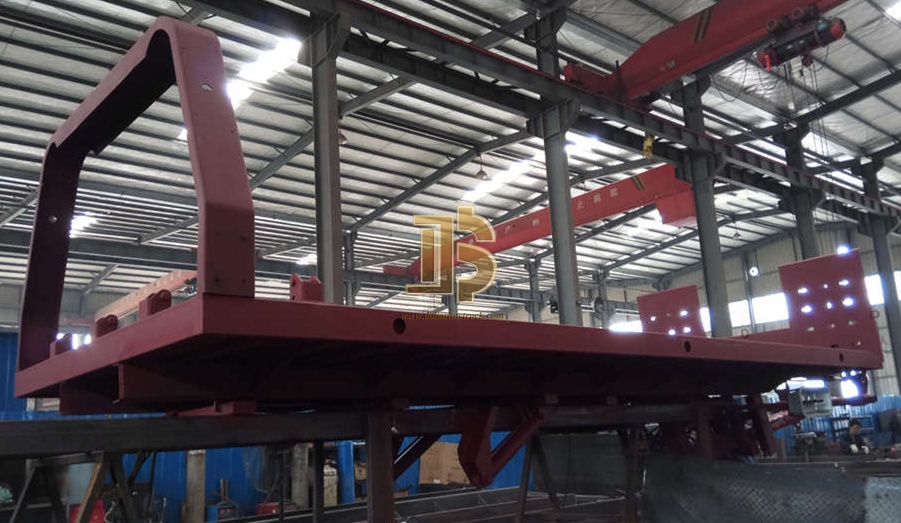

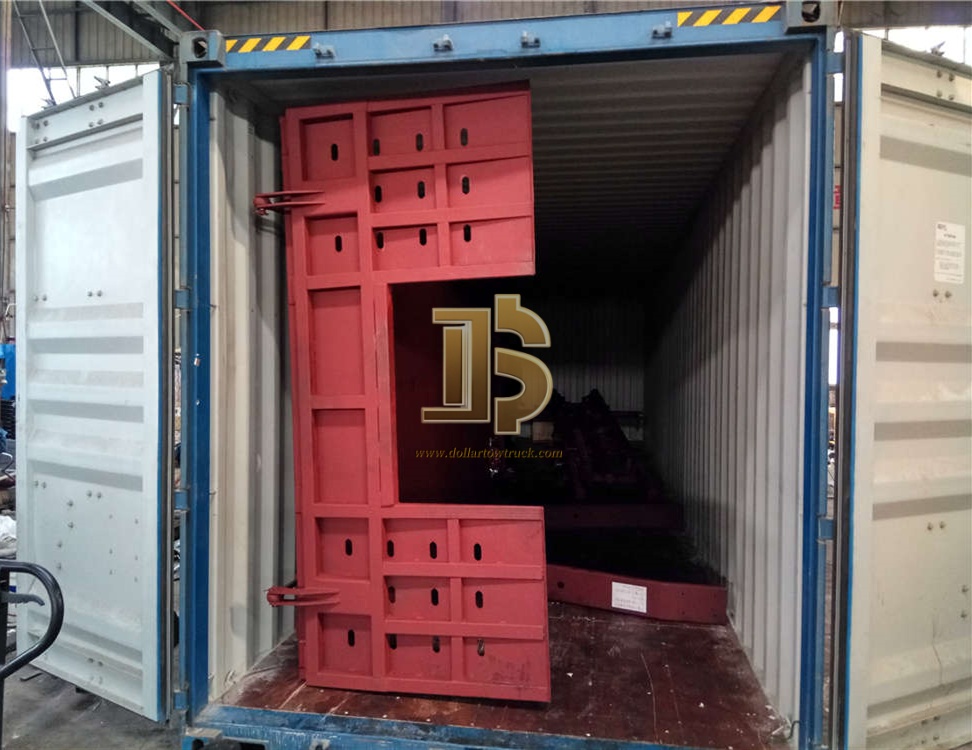

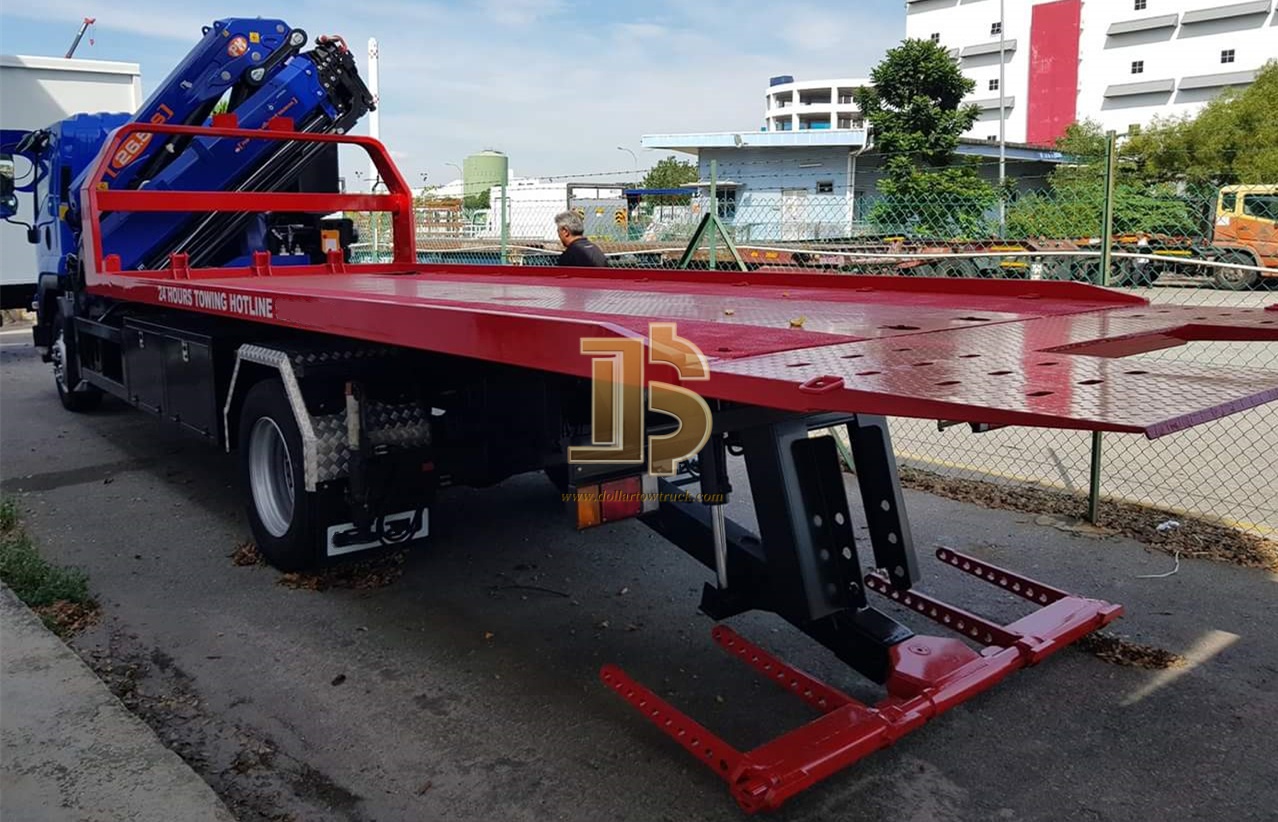

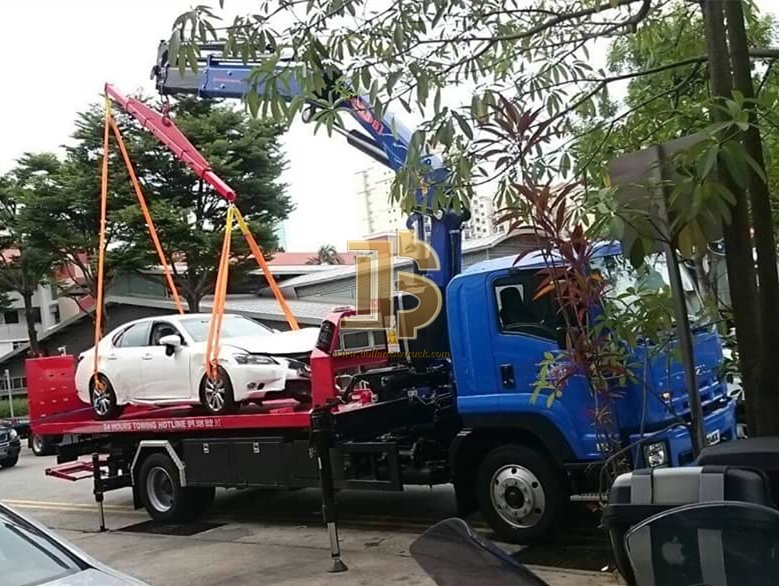

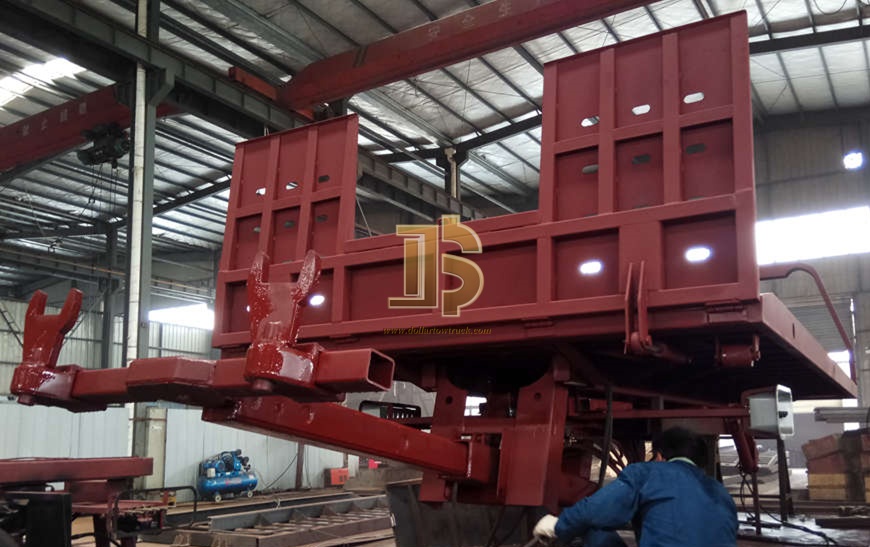

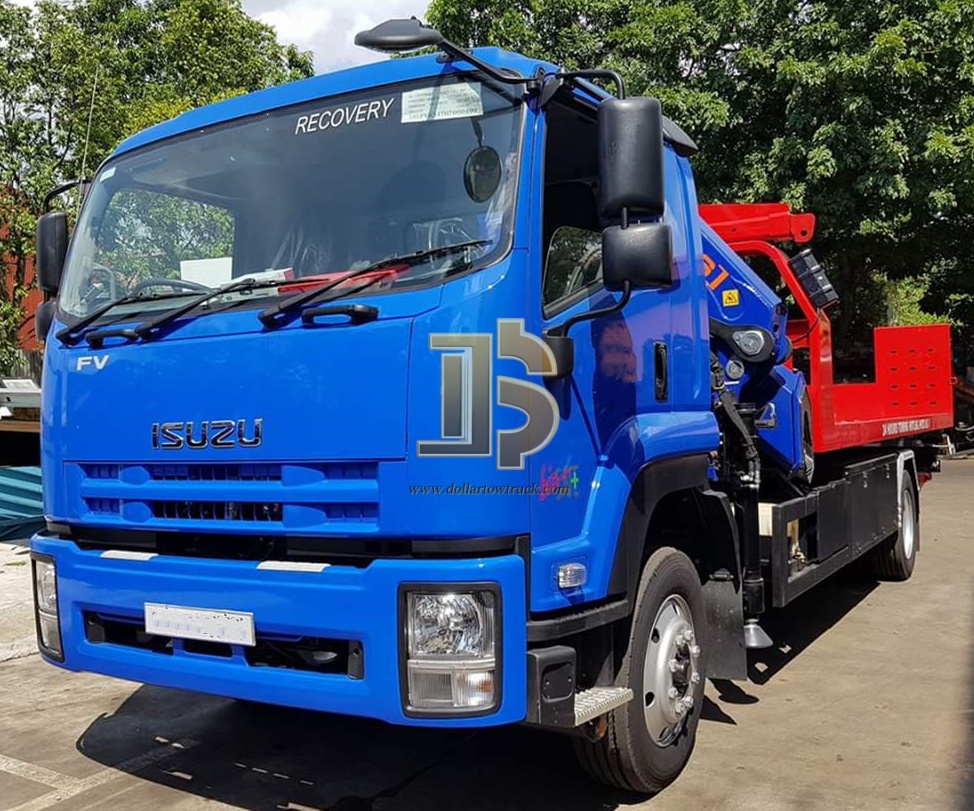

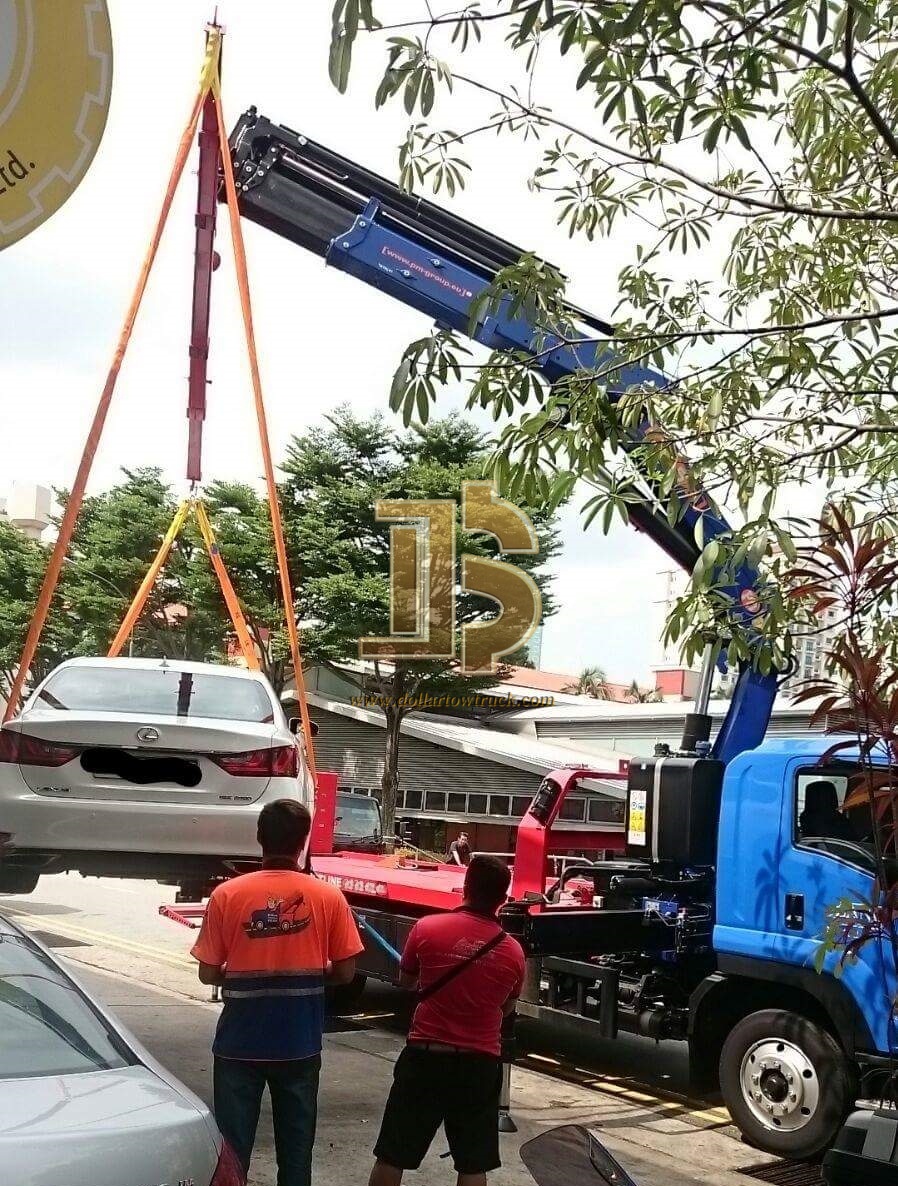

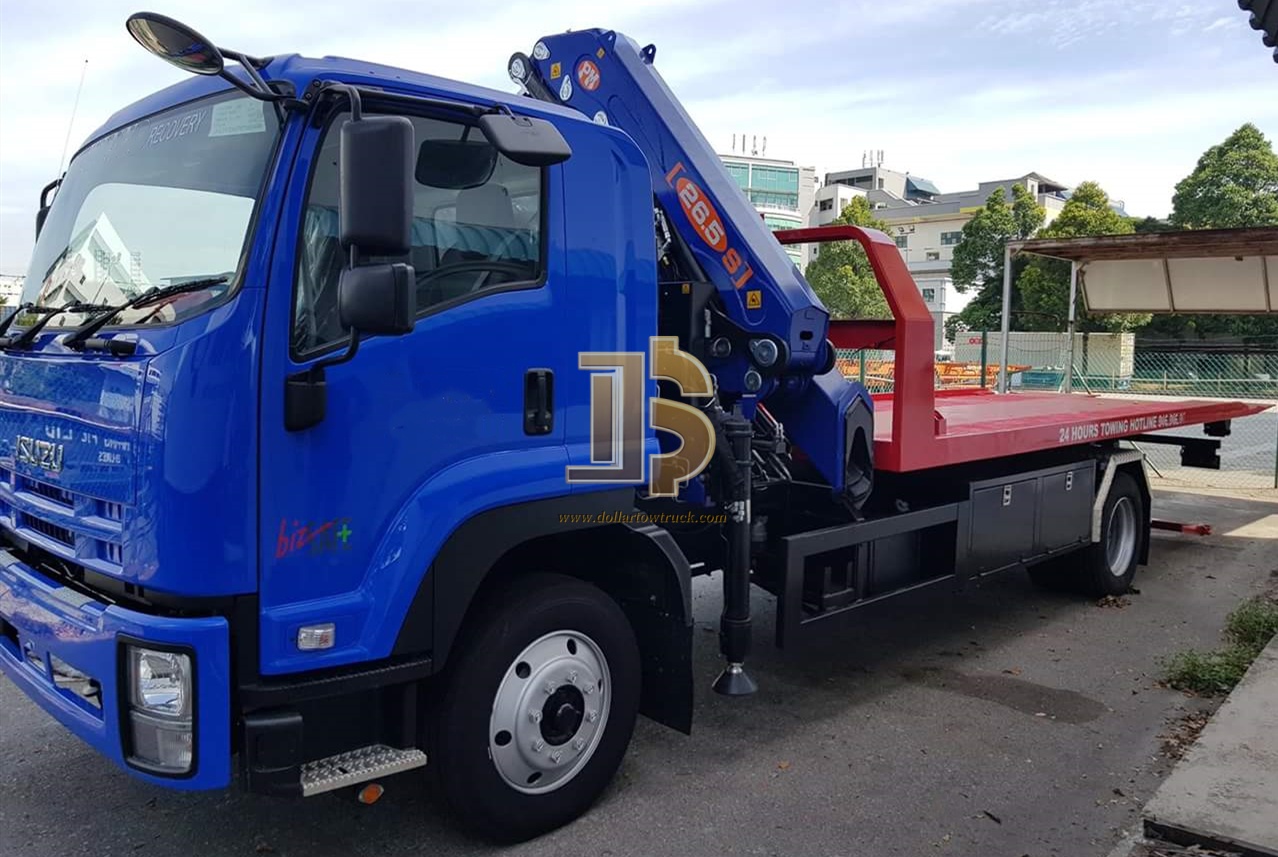

Gallery

Logo

Line Drawing

NOTE: Configuration is subject to local laws and regulations. All information in this document is for reference purposes only. Optional configuration might be shown.

Logo

capacity

Tray Rating: 8000 kgs (17,640 lbs)

Tray Length: 7200 mm (23.6)

Winch (First Layer): 8000 kgs (17,640 lbs)

Cable: 25 m (82)

Wheel Lift Rating: 5000 kgs (11,000 lbs)

Tow Rating: 8000 kgs (17,640 lbs)

All ratings are based on structural and design factors only. Vehicle chassis capacity and capabilities can vary significantly, affecting the overall performance and rating of the unit. All chassis specifications are minimums, heavier specifications may be required depending on chassis and equipment weights. Please contact your nearest distributor for additional information.

Hubei Dollar Tow Trucks Co. reserves the right to change, improve or modify products, which may change the specifications, models and feature availability at any time without notice and without obligation. Please contact your nearest distributor for additional information.
