Perfect Balance

The 5P5T is our entry level unit but it’s much more than that. With a strong 3.6 ton deck, you can carry a lot more than the usual 2 ton trucks. It is a great way to add units to your fleet at a low price. It will allow you to carry light duty trucks with ease.

Unit weight without chassis:

Logo

Standard Features

  • 1. Steel straight smooth tray, standard tray width 2280 mm (90″).
  • 2. Planetary winch with cable tensioner.
  • 3. Steel independent light pylon with lights, 1 sets.
  • 4. Left and right side manual control.
  • 5. Cross bar, 1 set.
  • 6. Slide in L-Arms, 1 pair.
  • 7. Forks, 2 pairs.
  • 8. Fork holders, 1 pair.
  • 9. Tow chain, 1 set.
  • 10. B type auxiliary wheels, 1 pair.
  • 11. Yellow LED light bar, 1 set.
  • 12. Night working lights, 2 sets,
  • 13. Binding straps, 4 sets.
  • 14. Hydraulic oil tank with gauge, 1 set.
  • 15. Steel toolbox, 1 set.
  • 16. Water tank with stainless steel hand washing box, 1 set.
  • 17. Pully fixing seats.
  • 18. Chrome door handle, 1 set.
  • 19. (Steel) Paint: First time iron red anti-rust paint, second time gray middle paint, third time and forth time standard color paint.

Logo

Options

  • 1. Removable rails.
  • 2. Steel straight/fold smooth/diamond/punching tray.
  • 3. Max. tray width 2590 mm (102″).
  • 4. Telescopic or fold hydraulic tail plate.
  • 5. Wireless remote control.
  • 6. Extra steel, stainless or aluminum toolboxes.
  • 7. A type auxiliary wheels, 1 pair.
  • 8. Extra Forks and fork holders.
  • 9. Fold or straight crane.
  • 10. Full recovery tool package.
  • 11. X-shape side puller.
  • 12. LED lights – thinner light bar, strobe lights, lights inside toolbox.
  • 13. Back-up lights & alarm.
  • 14. PTO.
  • 15. Customized toolboxes.
  • 16. Customized painting.
  • 17. Installation services and extended warranty.

Logo

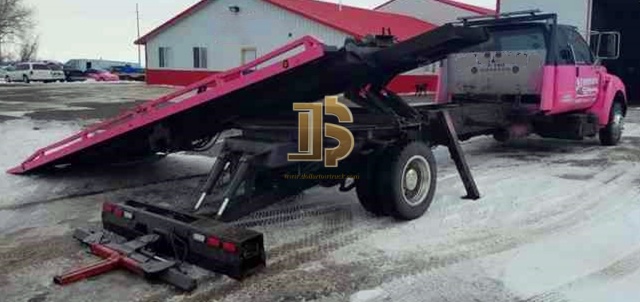

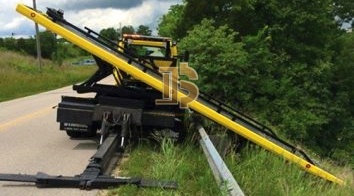

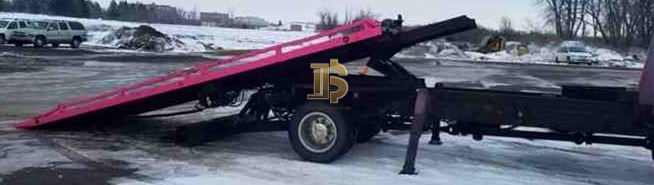

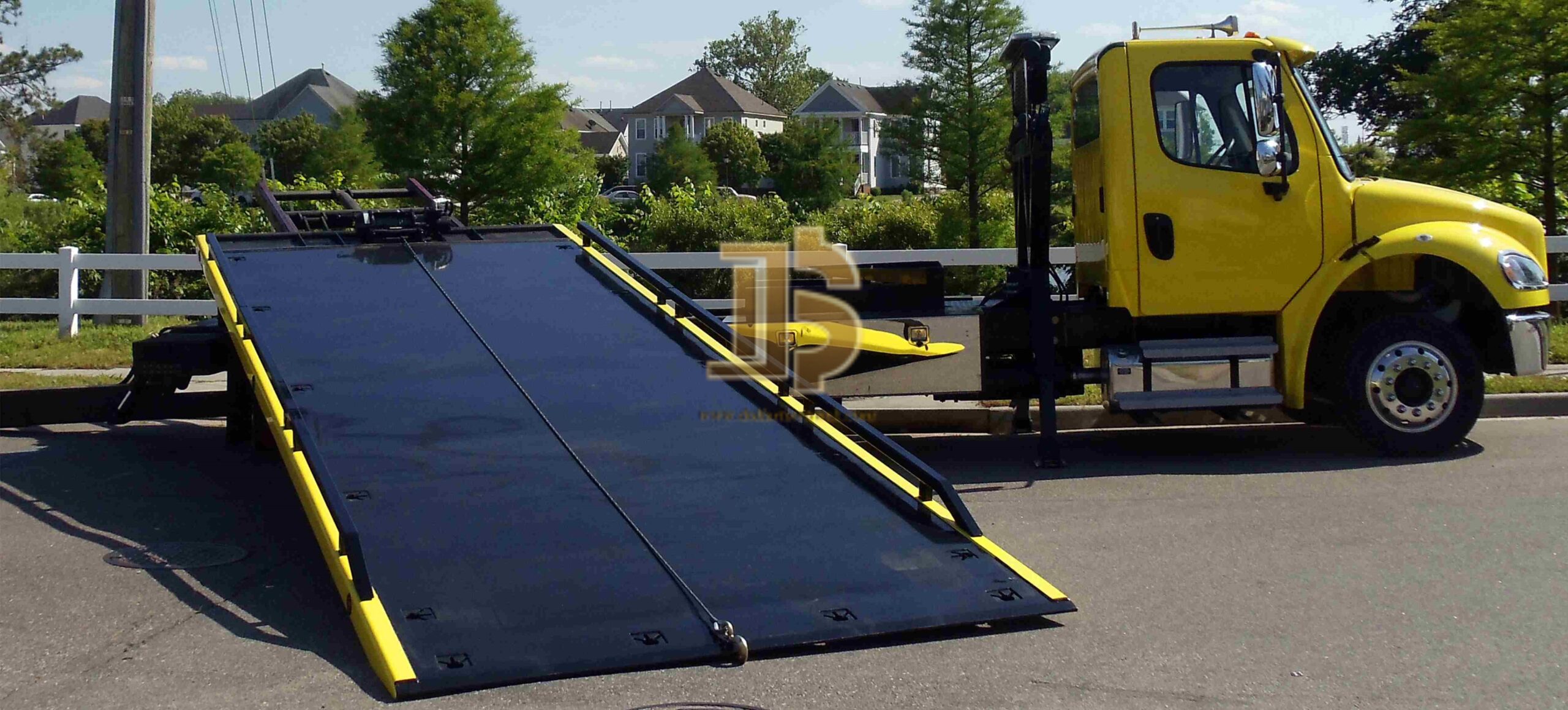

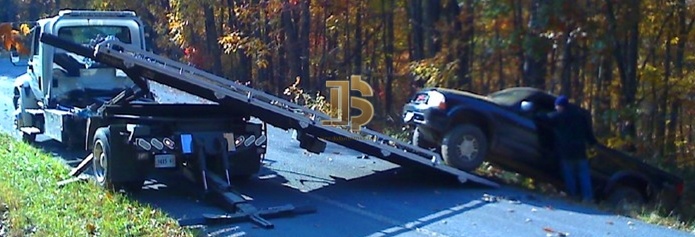

Gallery

Logo

Line Drawing

NOTE: Configuration is subject to local laws and regulations. All information in this document is for reference purposes only. Optional configuration might be shown.

Logo

capacity

Tray Rating: 5000 kgs (11,000 lbs)

Tray Length: 6400 mm (21)

Winch (First Layer): 5000 kgs (11,000 lbs)

Cable: 25 m (82)

Wheel Lift Extended Rating: 2500 kgs (5,500 lbs)

Tow Rating: 5000 kgs (11,000 lbs)

All ratings are based on structural and design factors only. Vehicle chassis capacity and capabilities can vary significantly, affecting the overall performance and rating of the unit. All chassis specifications are minimums, heavier specifications may be required depending on chassis and equipment weights. Please contact your nearest distributor for additional information.
